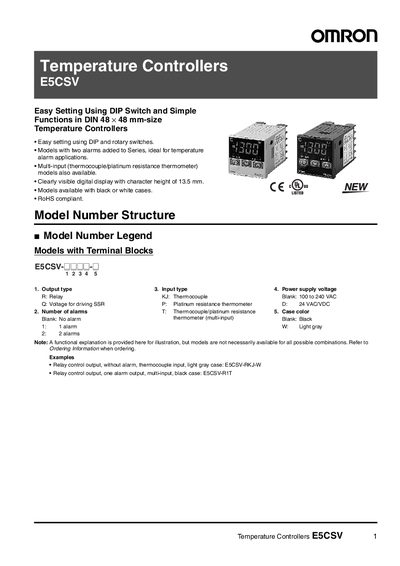

The E5CSV temperature controller is a controller with easy setting using DIP switches and simple functions in a DIN 48×48 mm-size. It has DIP and rotary switches for easy setting. Models with two alarms are added to the series, making it ideal for temperature alarm applications. Multi-input models with thermocouple/platinum resistance thermometer are also available. The digital display is clearly visible with a character height of 13.5 mm. Models are available with black or white cases. It is RoHS compliant.
This manual covers the E5CSV series of temperature controllers, describing model number structures, ordering information, and available accessories. It includes detailed specifications such as supply voltage, sensor input types, relay output ratings, and environmental limits.
Operational guidance is provided for setting the controller, using the front‑panel keys, configuring alarm modes, and interpreting the display indicators. The document also contains external connection diagrams, protection ratings, and warranty and application considerations.
| Supply voltage | 100 to 240 VAC, 50/60 Hz (and 24 VAC/VDC) |
|---|---|
| Sensor input types | Thermocouple K,J,L; Pt100, JPt100 |
| Relay output rating | SPST‑NO, 250 VAC, 3 A (resistive load) |
| Display character height | 13.5 mm |
| Ambient temperature range | -10 °C to 55 °C (no condensation or icing) |
| Degree of protection | Front panel IP66 |
| Memory protection | EEPROM, 1,000,000 write cycles |
| EMI compliance | EN 55011 Group 1 Class A (radiated & conducted) |
The controller operates from 100 to 240 VAC at 50/60 Hz, and a 24 VAC/VDC option is also available.
Models can have 0, 1, or 2 alarm outputs; two‑alarm models always use the upper‑limit alarm mode for alarm 2.
The digital display characters are 13.5 mm high.
The front panel is equivalent to an IP66 protection rating.
