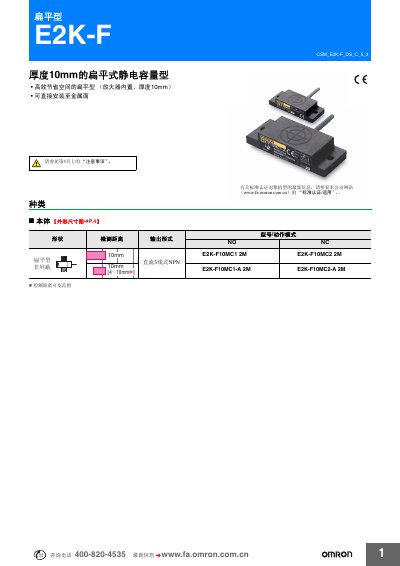

The Omron E2K-F10MC flat‑type electrostatic capacitance sensor manual provides specifications, installation steps, and safety guidelines.
This manual describes the Omron E2K-F10MC flat‑type electrostatic capacitance sensor, a 10 mm thick sensor designed for space‑saving applications. It includes the sensor’s dimensions, wiring options, and environmental ratings.
The document contains detailed specifications, input‑output circuit diagrams, installation instructions, and safety precautions. It also lists performance data such as detection distance, supply voltage range, and output capabilities. This manual is written in Chinese.
| Detection distance | 10 mm (adjustable 4–10 mm) |
|---|---|
| Supply voltage | DC12–24 V |
| Power consumption | <10 mA at 24 V |
| Output switch capacity | 100 mA (DC30 V) |
| Operating temperature range | -10 °C to +55 °C |
| Humidity range | 35 %–85 % RH |
| Insulation resistance | ≥50 MΩ |
| Protection rating | IP64, IP66 |
| Housing material | ABS (heat‑resistant) |
| Weight (packed) | ≈35 g |
| Cable type | Wired, 2 m standard cable |
The sensor operates on a DC supply of 12 to 24 volts.
The nominal detection distance is 10 mm, adjustable between 4 mm and 10 mm.
The output can sink up to 100 mA at 30 V DC.
