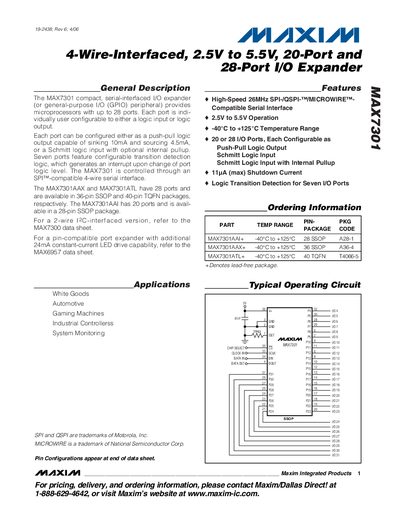

Maxim MAX7301 4-Wire-Interfaced 2.5V to 5.5V 20‑Port/28‑Port I/O Expander Datasheet
The MAX7301 is a compact, serial‑interfaced I/O expander that provides up to 28 GPIO ports. Each port can be individually configured as a push‑pull output (10 mA sink, 4.5 mA source) or a Schmitt‑trigger input with optional internal pull‑up. Seven ports support transition detection, generating an interrupt on port P31 when a change is detected.
The device operates from a 2.5 V to 5.5 V supply and functions over an industrial temperature range of –40 °C to +125 °C. It uses a standard 4‑wire SPI‑compatible interface (SCLK, CS, DIN, DOUT) and supports daisy‑chaining of multiple devices. Detailed electrical characteristics, timing parameters, pin assignments, and register maps are provided for system integration.
Maxim MAX7301 specifications
| Number of I/O Ports | 20 or 28 |
|---|---|
| Output Drive Capability | Sink 10 mA, Source 4.5 mA |
| Shutdown Current | 11 pA (max) |
| Operating Temperature Range | -40 °C to +125 °C |
