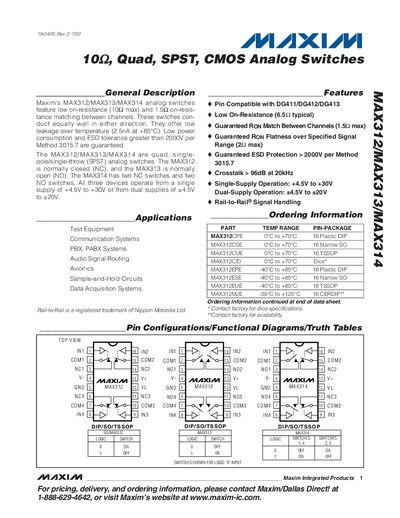

Maxim MAX312/MAX313/MAX314 Quad SPST CMOS Analog Switches Datasheet
The Maxim MAX312, MAX313, and MAX314 are quad single‑pole/single‑throw (SPST) CMOS analog switches. MAX312 is normally closed, MAX313 normally open, and MAX314 combines two NC and two NO switches. All devices operate from a single supply of +4.5 V to +30 V or dual supplies of +4.5 V to +20 V and offer low on‑resistance, low leakage, and high ESD tolerance.
These switches are suited for test equipment, communication systems, audio signal routing, avionics, sample‑and‑hold circuits, and data‑acquisition systems. The datasheet provides absolute maximum ratings, electrical characteristics for both dual‑ and single‑supply operation, typical performance graphs, pin configurations, and detailed package dimensions.
Maxim MAX313 specifications
| On‑Resistance (typical) | 6.5 Ω |
|---|---|
| On‑Resistance (max) | 10 Ω |
| On‑Resistance Match | 1.5 Ω max |
| Off‑Leakage Current | 2.5 nA at +85 °C |
| ESD Tolerance | >2000 V per Method 3015.7 |
| Supply Voltage (single) | +4.5 V to +30 V |
| Supply Voltage (dual) | +4.5 V to +20 V |
| Operating Temperature Range (commercial) | -40 °C to +85 °C |
| Operating Temperature Range (industrial) | -55 °C to +125 °C |
Source: Maxim MAX312/MAX313/MAX314 Quad SPST CMOS Analog Switches Datasheet
All Maxim MAX313 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the MAX312 operate over?
The MAX312 can be powered from a single supply of +4.5 V to +30 V, or from dual supplies of +4.5 V to +20 V.
From: Maxim MAX312/MAX313/MAX314 Quad SPST CMOS Analog Switches Datasheet
What is the typical on‑resistance of the MAX313?
The typical on‑resistance is 6.5 Ω.
From: Maxim MAX312/MAX313/MAX314 Quad SPST CMOS Analog Switches Datasheet
What is the maximum on‑resistance of the MAX312L/MAX313L/MAX314L switches?
The on‑resistance is specified as up to 10 Ω max.
What supply voltage ranges are supported by these analog switches?
They operate from a single supply of +4.5 V to +36 V or a dual supply of ±4.5 V to ±20 V.
