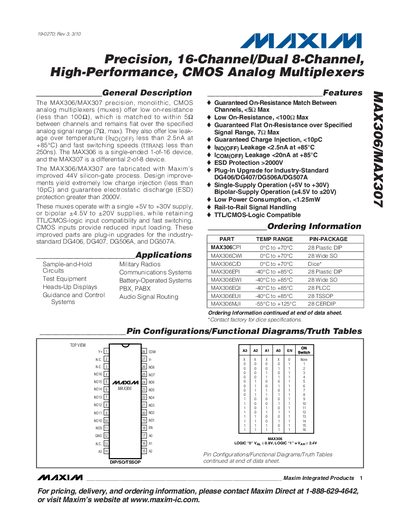

The MAX306/MAX307 are precision, monolithic, CMOS analog multiplexers (muxes) that offer low on-resistance (less than 100Ω), which is matched to within 5Ω between channels and remains flat over the specified analog signal range (7Ω, max). They also offer low leak- age over temperature (INO(OFF) less than 2.5nA at +85°C) and fast switching speeds (tTRANS less than 250ns). The MAX306 is a single-ended 1-of-16 device, and the MAX307 is a differential 2-of-8 device. The MAX306/MAX307 are fabricated with Maxim’s improved 44V silicon-gate process. Design improve- ments yield extremely low charge injection (less than 10pC) and guarantee electrostatic discharge (ESD) protection greater than 2000V. These muxes operate with a single +5V to +30V supply, or bipolar ±4.5V to ±20V supplies, while retaining TTL/CMOS-logic input compatibility and fast switching. CMOS inputs provide reduced input loading. These improved parts are plug-in upgrades for the industry- standard DG406, DG407, DG506A, and DG507A.
The MAX306 and MAX307 are high‑performance CMOS analog multiplexers offering low on‑resistance, tight channel matching and low leakage. They support single‑supply (+5 V to +30 V) or bipolar (+4.5 V to +20 V) operation and include ESD protection over 2000 V.
The document provides detailed ordering information, pin descriptions, absolute maximum ratings, electrical characteristics for dual and single supplies, and test circuit diagrams for designers.
| Leakage Current (INO OFF) | <2.5 nA at +85 °C |
|---|---|
| ESD Protection | >2000 V |
| Supply Voltage Range | +5 V to +30 V (single) or +4.5 V to +20 V (bipolar) |
| Power Consumption | <1.25 mW |
| Charge Injection | <10 pC |
They can operate from a single supply of +5 V to +30 V or a bipolar supply of +4.5 V to +20 V.
Leakage (INO OFF) is less than 2.5 nA at +85 °C.
The devices are protected against electrostatic discharge greater than 2000 V.
