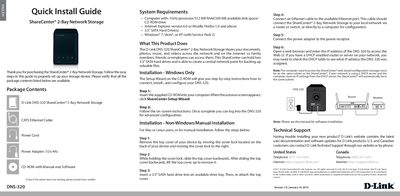

D-Link DNS-320 ShareCenter 2-Bay Network Storage Quick Install Guide
The guide begins with a list of package contents, confirming that the DNS-320 unit, CAT5 Ethernet cable, power cord, 12 V/4 A power adapter, and CD‑ROM with software are included. It also outlines the system requirements such as a 1 GHz processor, 512 MB RAM, and 200 MB free disk space.
Installation instructions are provided for both Windows and non‑Windows platforms. Windows users are directed to run the ShareCenter Setup Wizard from the CD, while Mac/Linux users receive step‑by‑step hardware installation directions, including hard‑drive insertion, cover removal, Ethernet connection, and web‑based configuration via a browser.
D-Link DNS-320 specifications
| Operating Temperature | 0 ~ 40°C |
|---|---|
| Operating Humidity | 90% Maximum (Non-condensing) |
| Storage Temperature | -20 ~ 50°C |
| Storage Humidity | 5 ~ 90% (Non-condensing) |
| Dimensions | 18.2 x 14.6 x 11.3 cm (h/l/w) |
| Weight | 0.8 kg |
| Ethernet Port | 1 x 10/100/1000 Gigabit Ethernet Port |
| Hard Drive Type | SATA I/ II |
| Power Adapter | 12V/4A |
All D-Link DNS-320 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
What are the system requirements for the ShareCenter Pulse?
Computer with 1GHz processor / 512 MB RAM / 200 MB available space / CD-ROM drive, Internet Explorer 7.0 or Mozilla Firefox 3.0 and above.
What RAID configurations are supported?
Standard, JBOD (Linear), RAID 0, and RAID 1.
What items are included in the DNS-320 package?
The package contains the D‑Link DNS‑320 ShareCenter, a CAT5 Ethernet cable, a power cord, a 12 V/4 A power adapter, and a CD‑ROM with manual and software.
From: D-Link DNS-320 ShareCenter 2-Bay Network Storage Quick Install Guide
What are the system requirements for using the DNS-320?
A computer with a 1 GHz processor, 512 MB RAM, 200 MB free disk space, a CD‑ROM drive, and Windows 7, Vista, or XP (SP2) or a compatible browser.
From: D-Link DNS-320 ShareCenter 2-Bay Network Storage Quick Install Guide
How can I reset the ShareCenter Pulse to factory defaults?
Press and hold the Reset button on the rear panel for more than 5 seconds; the unit will return to its factory settings.
What operating systems can configure the DNS-320 via the web interface?
Any PC, Mac, or Linux computer with a web browser such as Internet Explorer 7, Firefox 3, or Safari 4 and above can access the device without installing additional software.
