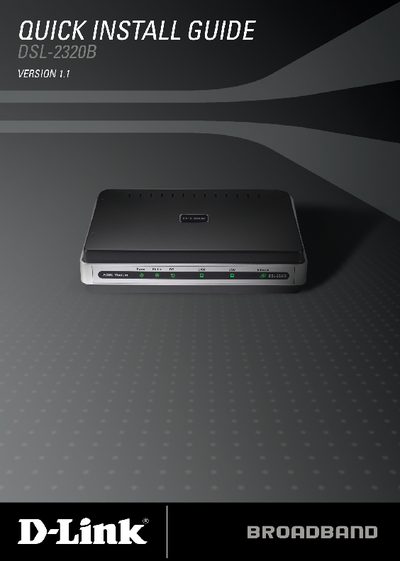

D-Link DSL-2320B Quick Install Guide
The DSL-2320B is an ADSL2+ modem that supports both Ethernet and USB connections. This Quick Install Guide walks you through the required hardware, safety precautions, and basic configuration steps.
It covers connecting the telephone line, Ethernet or USB to a PC, powering the unit, installing the USB driver (if needed), and logging into the web interface at http://192.168.1.1 using the default usernames and passwords. Technical support contact information is also provided.
D-Link DSL-2320B specifications
| Modem type | ADSL2+ |
|---|---|
| Supported connections | Ethernet, USB, RJ‑11 DSL line |
| Power adapter rating | 12VDC, 1A DC CEC‑compliant switching power adapter |
All D-Link DSL-2320B documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
How can I reset the DSL‑2320B to factory defaults?
Press the Reset button on the rear panel; the modem will restore its original factory settings.
What types of connections does the DSL‑2320B support?
The DSL‑2320B supports both Ethernet and USB connections for linking to a computer or network.
From: D-Link DSL-2320B ADSL2+ Ethernet/USB Modem User Manual
What does the Internet LED indicate?
A solid green Internet LED means the modem has an IP address and is connected to the Internet; a red LED indicates authentication failure.
From: D-Link DSL-2320B ADSL2+ Ethernet/USB Modem User Manual
