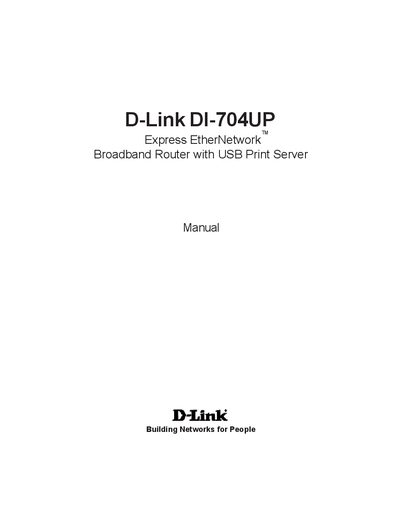

D-Link DI-704UP Broadband Router User Manual
The DI-704UP is an Express EtherNetwork broadband router with a built‑in 4‑port 10/100Mbps AutoMDIX switch and a USB port for printer sharing. It includes a web‑based graphical interface, firewall features, and a simple setup wizard, making it suitable for home or small‑office networks.
This manual covers package contents, hardware connections, LED indicators, network setup, configuration menu usage, print‑server software installation, technical specifications, frequently asked questions, and warranty and support details.
D-Link DI-704 specifications
| Ethernet ports | 4 x 10/100Mbps AutoMDIX |
|---|---|
| Power adapter | 5V DC |
| Built‑in switch | 4‑port Ethernet switch |
Source: D-Link DI-704P Express EtherNetwork Broadband Router Manual
All D-Link DI-704 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many Ethernet ports does the DI-704P have?
The DI-704P provides four 10/100Mbps AutoMDIX Ethernet ports.
From: D-Link DI-704P Express EtherNetwork Broadband Router Manual
What power supply should be used with the DI-704P?
Use the supplied 5V DC power adapter; using a different voltage rating can damage the unit and void the warranty.
From: D-Link DI-704P Express EtherNetwork Broadband Router Manual
How many computers can be connected directly to the DI-704UP router?
Up to four computers can be connected directly using the router’s built‑in 4‑port switch.
How do you reset the DI-704UP to factory default settings?
Press the Reset button on the device to restore factory default settings.
How many Ethernet ports does the DI-704 have?
The DI-704 has four 10/100 Mbps auto‑sensing Ethernet ports.
What is the default IP address of the DI-704?
The default IP address is 192.168.123.254.
