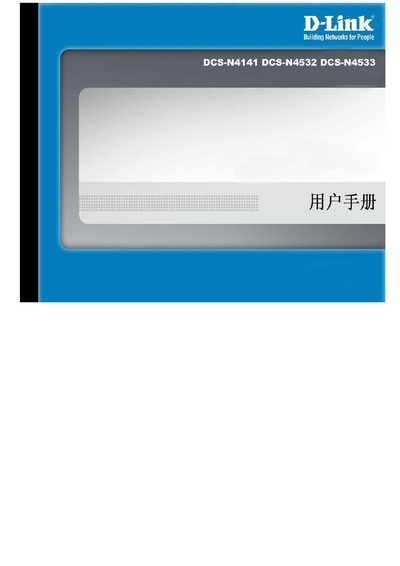

D-Link DCS-N4141/N4532/N4533 User Manual
This manual provides step‑by‑step instructions for installing and configuring D‑Link DCS‑N4141, DCS‑N4532 and DCS‑N4533 IP cameras. It covers hardware connections, power over Ethernet, network setup, video and audio options, alarm I/O, and firmware updates.
The document also lists the technical specifications of the cameras, including sensor type, lens range, resolution options, storage support, and environmental ratings, helping users to select appropriate settings for their surveillance needs.
D-Link N4532 specifications
| Resolution | 540 TV Lines |
|---|---|
| Image Sensor | 1/4" CMOS |
| Lens | 3.7‑12mm vari‑focal, F1.6 |
| CPU | ARM9, 32‑bit RISC |
| Memory (SDRAM) | 64 MB |
| Flash | 8 MB |
| Relay Output | COM & N.O. contacts |
| Power Supply | DC 12 V, 490 mA |
All D-Link N4532 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of storage cards can be used with the camera?
The camera works with SD cards ranging from 128 MB up to 4 GB, such as SanDisk 4G 80X.
How many alarm inputs and outputs are available?
There is one alarm input and a relay output with COM and N.O. contacts.
How do I enable Power over Ethernet on the camera?
The camera supports PoE according to the 802.3af standard with a maximum power of 15.4 W.
Which video compression formats are supported?
The camera can encode video using MPEG‑4 or M‑JPEG formats.
