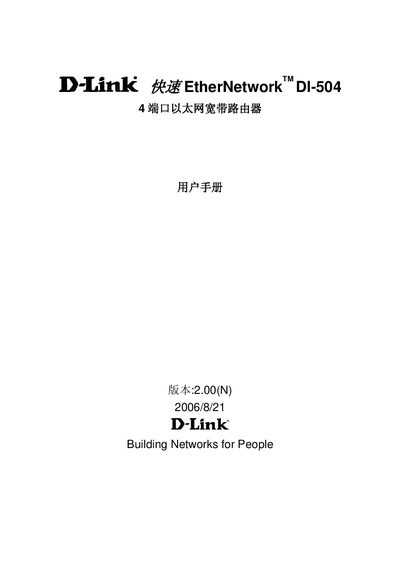

D-Link DI-504 Ethernet Broadband Router User Manual
This manual provides a quick‑start guide and detailed instructions for installing and configuring the D‑Link DI‑504 broadband router. It covers hardware description, wiring, web‑based management, and advanced features such as VPN pass‑through, firewall, DHCP, and virtual server support.
The document also includes troubleshooting steps, networking basics, and specifications of the router’s interfaces, power requirements, and environmental limits, helping users set up a secure home or small‑office network. This manual is written in Chinese.
D-Link DI-504 specifications
| Power Supply | AC 9 V, 1.0 A external adapter |
|---|---|
| Dimensions (L×W×H) | 5.6 in × 4.3 in × 1.2 in (142 mm × 109 mm × 31 mm) |
| Weight | 0.47 lb (213 g) |
| Maximum Humidity | 95 % non‑condensing |
All D-Link DI-504 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I reset the DI‑504 to factory defaults?
Press the reset button on the device; this restores the router to its factory default settings.
Which web browsers are required for the router’s web‑based management?
A web browser such as Microsoft Internet Explorer 6 or later, Netscape Navigator 7 or later, or any browser that supports Java is required.
How do you reset the DI‑504 to factory defaults?
Press the reset button with a pin for 5 seconds while the device is powered on.
Which internet connections can the DI‑504 share?
It can share a broadband cable or DSL modem connection.
