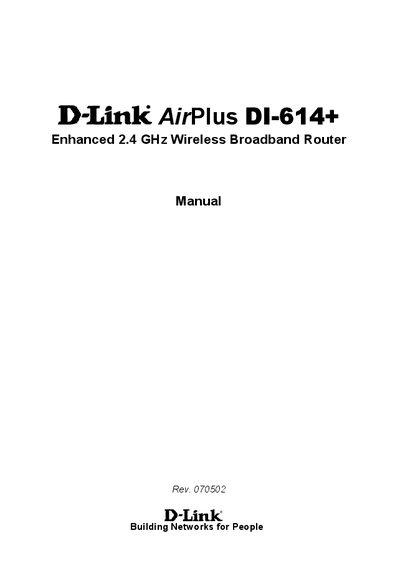

D-Link DI-614+ Wireless Router Manual
This manual introduces the D-Link AirPlus DI-614+ Wireless Router, an enhanced 802.11b router that supports data rates up to 22 Mbps and operates in the 2.4 GHz band. It covers package contents, basic wireless concepts, and step‑by‑step installation instructions, including wiring, power connection, and initial configuration via the web interface.
The document also details the router’s features such as VPN pass‑through, DHCP server, 256‑bit encryption, and LED status indicators. Technical specifications, warranty terms, and contact information for technical support are provided at the end of the guide.
D-Link DI-614+ specifications
| Power Adapter | 5 V DC, 2.5 A |
|---|---|
| Wireless Frequency | 2.4 GHz |
| Maximum Data Rate | Up to 22 Mbps |
| Encryption | 256‑bit |
| VPN Pass‑through | Supported |
| DHCP Server | Enabled |
All D-Link DI-614+ documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I reset the DI-614+ to factory defaults?
Press the Reset button; this restores the DI-614+ to the factory default settings.
What power supply does the DI‑614+ require?
It requires a 5 V DC power adapter capable of delivering 2.5 A.
What is the maximum wireless speed of the router?
The router can achieve data transfer speeds up to 22 Mbps when used with compatible D‑Link devices.
