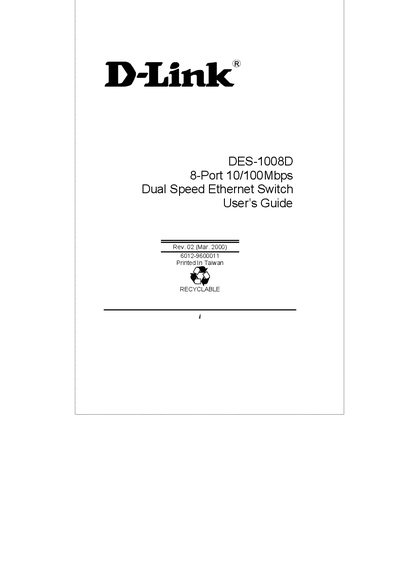

D-Link DES-1008D 8-Port Ethernet Switch User Manual
This guide explains how to install, connect, and configure the D-Link DES-1008D 8‑port 10/100 Mbps Ethernet switch. It includes an overview of fast Ethernet technology, switching features, unpacking instructions, and detailed wiring diagrams.
Key sections cover connecting PCs and hubs, RJ‑45 pin specifications, technical specifications, power and environmental data, as well as the limited warranty terms and FCC/CE compliance warnings.
D-Link DES-1008D specifications
| Data Transfer Rate (Ethernet) | 10 Mbps (half duplex), 20 Mbps (full‑duplex) |
|---|---|
| Data Transfer Rate (Fast Ethernet) | 100 Mbps (half duplex), 200 Mbps (full‑duplex) |
| Number of Ports | 8 × 10/100 Mbps NWay ports |
| Power Consumption | 1.2 W (max.) |
| Operating Temperature | 0 °C ~ 50 °C |
| Dimensions | 171 × 98 × 29 mm (W × H × D) |
Source: D‑Link DES-1008D 8‑Port 10/100Mbps Dual Speed Ethernet Switch User Guide
All D-Link DES-1008D documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many ports does the DES‑1008D provide?
The switch has eight 10/100 Mbps NWay ports.
From: D‑Link DES-1008D 8‑Port 10/100Mbps Dual Speed Ethernet Switch User Guide
What is the maximum power consumption of the DES‑1008D?
The device consumes up to 1.2 watts.
From: D‑Link DES-1008D 8‑Port 10/100Mbps Dual Speed Ethernet Switch User Guide
