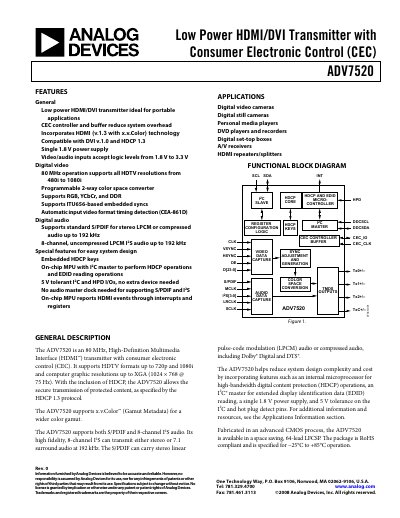

Analog Devices ADV7520 HDMI/DVI Transmitter Datasheet
The ADV7520 is an 80 MHz HDMI/DVI transmitter designed for portable applications. It integrates a CEC controller, HDCP 1.3 protection, and supports HDTV video formats from 480i up to 1080i as well as various audio standards.
The device operates from a single 1.8 V supply, offers 5 V‑tolerant I²C and HPD pins, and includes on‑chip micro‑processor functions for HDCP and EDID handling. Detailed specifications, absolute maximum ratings, and mechanical dimensions are provided in the following sections.
Analog Devices ADV7520 specifications
| Input Voltage High (VIH) | 1.4 V to 3.5 V |
|---|---|
| Input Voltage Low (VIL) | -0.3 V to +0.7 V |
| Input Capacitance | 1.5 pF |
| Thermal Resistance Junction‑to‑Case (θJC) | 15.2 °C/W |
| Thermal Resistance Junction‑to‑Ambient (θJA) | 59 °C/W |
| Operating Temperature Range | -40 °C to +100 °C |
| Maximum Junction Temperature | 150 °C |
| TMDS Output Clock Frequency | 80 MHz |
| Audio Sample Rate (I2S/S/PDIF) | Up to 192 kHz |
| Supply Voltage | Single 1.8 V |
Source: Analog Devices ADV7520 HDMI/DVI Transmitter Datasheet
All Analog Devices ADV7520 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the ADV7520 require?
The device operates from a single 1.8 V power supply.
Which video resolutions are supported by the ADV7520?
It supports all HDTV resolutions from 480i up to 1080i.
What supply voltage does the ADV7520 require?
It requires a single 1.8 V power supply.
Which video resolutions does the ADV7520 support?
It supports HDTV resolutions from 480i up to 1080i and computer graphics up to XGA (1024 × 768 @ 75 Hz).
