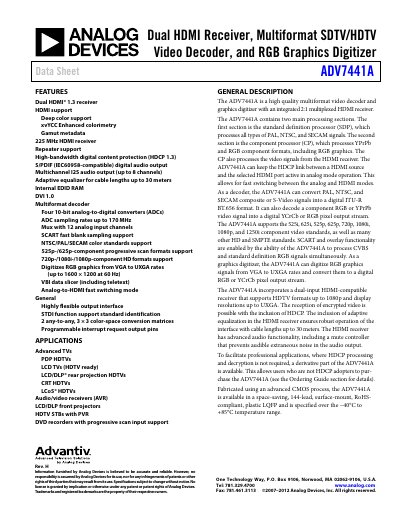

Analog Devices ADV7441A Data Sheet
The ADV7441A is a dual HDMI 1.3 receiver that supports multiformat SDTV/HDTV video decoding and RGB graphics digitization. It includes four 10‑bit ADCs, adaptive equalization for HDMI cable lengths up to 30 m, and HDCP 1.3 support.
The device operates from −40 °C to +85 °C, is supplied by multiple rails (AVDD, DVDD, DVDDIO, PVDD, TVDD, CVDD), and is offered in a 144‑lead LQFP package. Detailed electrical, video, and timing specifications are provided for system designers.
Analog Devices ADV7441A specifications
| Operating temperature range | −40 °C to +85 °C |
|---|---|
| AVDD supply voltage | 1.71 V to 1.89 V |
| Number of ADCs | Four 10‑bit ADCs |
All Analog Devices ADV7441A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How long can HDMI cables be while maintaining signal integrity?
The adaptive equalizer allows cable lengths up to 30 meters.
What is the maximum junction temperature for the device?
The maximum junction temperature (TJ_MAX) is 119 °C.
What video standards are supported by the ADV7441A?
It supports NTSC, PAL, SECAM and component video standards 525i, 625i, 525p, 625p, 720p, 1080i, 1080p, and 1250i.
What is the operating temperature range?
The device operates from –40 °C to +85 °C.
