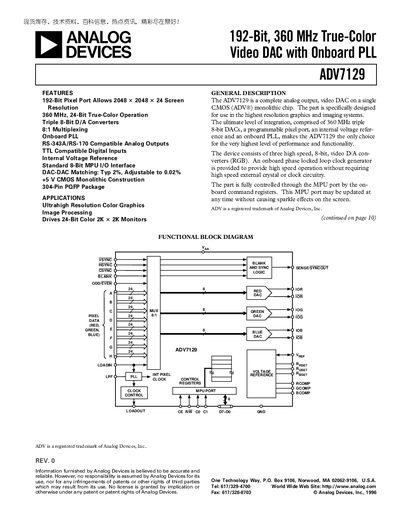

Analog Devices ADV7129 Datasheet
The ADV7129 is a 192‑bit, 360 MHz true‑color video DAC with three 8‑bit converters, an onboard PLL, and a programmable pixel port. It supports 2048 × 2048 × 24‑bit resolution and provides RS‑343A/RS‑170 compatible analog outputs.
The document provides full electrical specifications, timing parameters, pin assignments for the 304‑pin PQFP package, and recommended operating conditions, making it a comprehensive reference for designers integrating the device into high‑resolution graphics and imaging systems.
Analog Devices ADV7129 specifications
| Resolution (Each DAC) | 8 Bits |
|---|---|
| Clocking Rate | 45 MHz |
| DAC‑to‑DAC Matching | 2 % |
| Power Supply Rejection Ratio | 0.12 %/% |
| Operating Temperature Range | 0°C to +70°C |
| Package | 304‑Pin PQFP |
Source: Analog Devices ADV7129 Datasheet
All Analog Devices ADV7129 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum clock rate for the ADV7129?
The device can operate with a LOADIN clocking rate up to 45 MHz.
What voltage range does the internal reference provide?
The voltage reference ranges from 1.14 V to 1.30 V.
What is the ambient operating temperature range of the ADV7129?
The device operates from 0 °C to +70 °C ambient temperature.
What package does the ADV7129 use?
It is supplied in a 304‑Pin PQFP package.
