ADV7129 is a 360MHz true-color video DAC with high integration, which includes 360MHz triple 8-bit DACs, a programmable pixel port, an internal voltage reference and an onboard PLL. It is suitable for high resolution graphics and imaging systems.
The ADV7129 is a complete analog‑output video DAC on a single CMOS monolithic chip, designed for ultrahigh‑resolution color graphics and imaging systems. It integrates three 8‑bit DACs, a programmable pixel port, an internal voltage reference, and an onboard PLL to achieve 360 MHz operation and 24‑bit true‑color output.

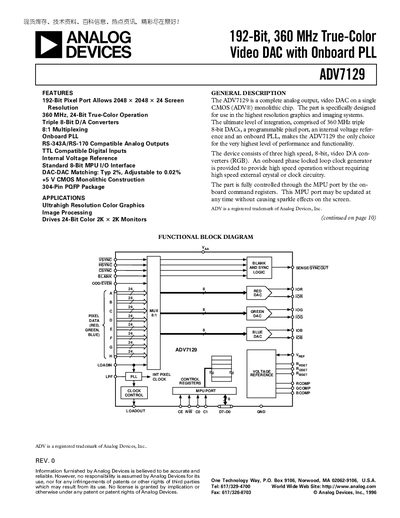

The document provides detailed static and dynamic performance specs, pin assignments for the 304‑pin PQFP package, electrical characteristics, absolute maximum ratings, and functional block diagrams, enabling designers to implement the device in 2K × 2K color monitor applications.
| Resolution (Each DAC) | 8 Bits |
|---|---|
| Pixel Port Resolution | 2048 x 2048 x 24 |
| Analog Output Current Range | 10 – 60 mA |
The device operates from 0 °C to +70 °C ambient temperature.
It is supplied in a 304‑Pin PQFP package.
