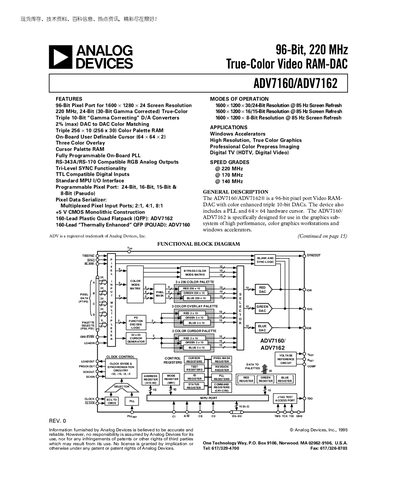

Analog Devices ADV7160/ADV7162 Video RAM-DAC Handbook
The ADV7160 and ADV7162 are 96‑bit pixel‑port video RAM‑DACs designed for high‑performance graphics workstations and Windows accelerators. They feature triple 10‑bit DACs, on‑board PLL, cursor support, and multiple pixel‑port configurations.
The handbook includes a feature list, detailed specifications, timing diagrams, block diagrams, pin and register descriptions, JTAG test port information, and mechanical dimensions. It serves as a reference for designers integrating the devices into video subsystems.
Analog Devices ADV7160 specifications
| Resolution (Each DAC) | 10 Bits |
|---|---|
| Input High Voltage (Digital Inputs) | 2 V |
| Power Supply (Vaa) | 5 V |
| Operating Temperature Range | 0°C to +70°C |
| Package (ADV7162) | 160‑Lead Plastic QFP |
| Package (ADV7160) | 160‑Lead Thermally Enhanced QFP |
Source: Analog Devices ADV7160/ADV7162 Video RAM-DAC Handbook
All Analog Devices ADV7160 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range of the ADV7160/ADV7162?
The devices operate from 0 °C up to +70 °C.
How much current does the ADV7160 draw at 220 MHz?
It draws 475 mA when operating at 220 MHz.
What is the operating temperature range of the ADV7160/ADV7162?
The device is rated for temperatures from 0 °C up to +70 °C.
From: Analog Devices ADV7160/ADV7162 Video RAM‑DAC Datasheet
What is the maximum pixel‑clock rate for 2:1 multiplexing?
The maximum pixel‑clock rate for 2:1 multiplexing is 110 MHz.
From: Analog Devices ADV7160/ADV7162 Video RAM‑DAC Datasheet
