Start here

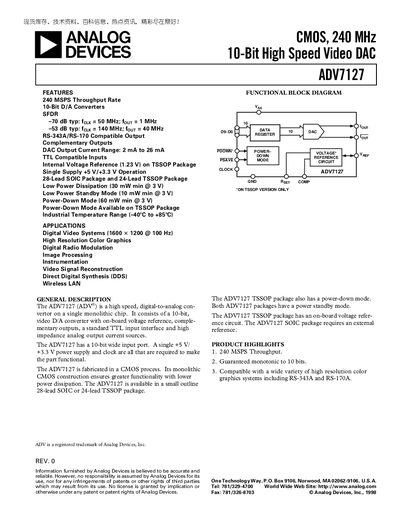

ANALOG DEVICES CMOS 240 MHz 10-Bit High Speed Video DAC ADV7127 handbook(1)
The ADV7127 is a high‑speed 10‑bit video digital‑to‑analog converter fabricated in a CMOS process. It features a single‑supply operation (+5 V/+3.3 V), internal voltage reference (1.23 V) on the TSSOP package, TTL‑compatible inputs and complementary outputs.
The device is offered in 28‑lead SOIC and 24‑lead TSSOP packages and supports a throughput of 240 MSPS. It provides output currents from 2 mA to 26 mA, low power dissipation (30 mW @ 3 V) and operates over an industrial temperature range of –40 °C to +85 °C. Applications include digital video systems, high‑resolution graphics, DDS, and wireless LAN.
Analog Devices ADV7127 specifications
| Resolution | 10 Bits |
|---|---|
| Throughput Rate | 240 MSPS |
| Output Current Range | 2 mA to 26 mA |
| Supply Voltage | Single Supply +5 V/+3.3 V |
| Power Dissipation | 30 mW min @ 3 V |
| Operating Temperature | -40°C to +85°C |
| Package Options | 28‑Lead SOIC, 24‑Lead TSSOP |
Source: ANALOG DEVICES CMOS 240 MHz 10-Bit High Speed Video DAC ADV7127 handbook(1)
All Analog Devices ADV7127 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the ADV7127 have an internal voltage reference?
Yes, the TSSOP version includes an internal 1.23 V voltage reference.
From: ANALOG DEVICES CMOS 240 MHz 10-Bit High Speed Video DAC ADV7127 handbook(1)
Is there a power‑down mode?
The TSSOP package provides a power‑down mode, with a typical consumption of 60 mW at 3 V.
From: ANALOG DEVICES CMOS 240 MHz 10-Bit High Speed Video DAC ADV7127 handbook(1)
What supply voltage does the ADV7127 require?
It operates from a single +5 V or +3.3 V supply.
From: ANALOG DEVICES CMOS 240 MHz 10-Bit High Speed Video DAC ADV7127 handbook(1)(1)
Does the ADV7127 have a power‑down mode?
Yes, a power‑down mode is available only on the TSSOP package.
From: ANALOG DEVICES CMOS 240 MHz 10-Bit High Speed Video DAC ADV7127 handbook(1)(1)
