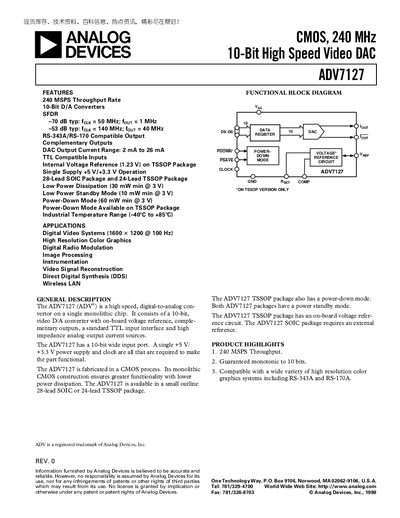

This document describes the features and characteristics of the ADV7127, a CMOS, 240 MHz 10-Bit high-speed video DAC. It features a throughput rate of 240 MSPS, 10-bit D/A converters, RS-343A/RS-170 compatible output, DAC output current range of 2 mA to 26 mA, TTL compatible inputs, internal voltage reference, etc.
The ADV7127 video DAC from Analog Devices provides a high‑speed 10‑bit digital‑to‑analog conversion for video and graphics applications. It operates from a single +5 V or +3.3 V supply and is available in 28‑lead SOIC and 24‑lead TSSOP packages.
Key features include a 240 MSPS throughput rate, complementary outputs, TTL‑compatible inputs, internal voltage reference (TSSOP only), low power dissipation, and an industrial temperature range of –40 °C to +85 °C. The datasheet also covers timing specifications, absolute maximum ratings, ordering options, and PCB layout recommendations.
| Throughput Rate | 240 MSPS |
|---|---|
| Resolution | 10 Bits |
| Output Current | 2.0–18.5 mA |
| Supply Voltage | +5 V or +3.3 V (single supply) |
| Operating Temperature | -40 °C to +85 °C |
It operates from a single +5 V or +3.3 V supply.
Yes, a power‑down mode is available only on the TSSOP package.
Each output can source 2.0 mA up to 18.5 mA.
The device is rated for –40 °C to +85 °C.
