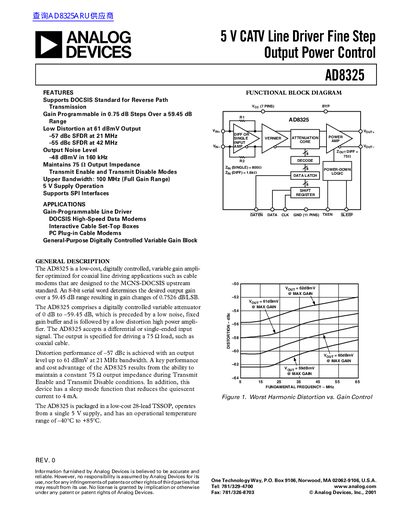

Analog Devices AD8325 Datasheet
The AD8325 is a 5 V supply operation device designed to support the DOCSIS standard for reverse path transmission. It features an 8-bit serial word interface that determines output gain over a range of 59.45 dB in steps of 0.75 dB. The device includes a low noise fixed gain buffer, a digitally controlled variable attenuator, and a low distortion high power amplifier.
Read onlineAnalog Devices AD8325 specifications
| Gain Range | 58.45 to 60.45 dB |
|---|---|
| Bandwidth (-3 dB) | 100 MHz |
| Supply Voltage | 4.75 V to 5.25 V |
| Quiescent Current (Transmit Enable) | 123 mA typical |
Source: Analog Devices AD8325 Datasheet
All Analog Devices AD8325 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the gain step size of the AD8325?
The gain is programmable in steps of 0.75 dB over a range of approximately 59.45 dB.
What is the maximum output noise level?
The output noise level is -48 dBmV in a 160 kHz bandwidth.
What is the gain range of the AD8325?
The AD8325 provides a programmable gain from about –29.45 dB to +30 dB, covering roughly 59.45 dB.
How is the gain programmed?
Gain is set by sending an 8‑bit serial word over an SPI interface using the DATEN, SDATA, and CLK pins.
What is the gain step size of the AD8325?
The gain changes in steps of 0.7526 dB per least‑significant bit.
How is the gain programmed on the AD8325?
Gain is programmed via an 8‑bit serial word over an SPI interface using the DATEN, SDATA, and CLK pins.
