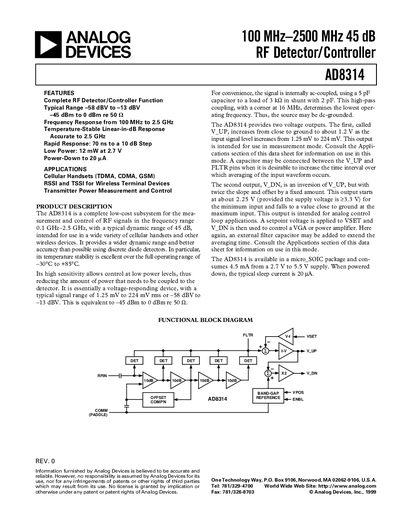

Analog Devices AD8314 Logarithmic Amplifier Datasheet
The AD8314 is a complete RF detector/controller subsystem designed for cellular handsets and other wireless devices. It measures and controls RF signals from 0.1 GHz to 2.5 GHz, offering a 45 dB dynamic range and temperature‑stable linear‑in‑dB response.
Key features include a low supply current (12 mW at 2.7 V), power‑down mode with 20 µA draw, two voltage outputs (V_UP for measurement and V_DN for control), and an 8‑lead micro‑SOIC package. The device is specified for operation from –30 °C to +85 °C.
Analog Devices AD8314 specifications
| Frequency Range | 0.1 – 2.5 GHz |
|---|---|
| Input Voltage Range | 1.25 – 224 mV rms |
| V_UP Output Voltage Range | 0.01 – 1.2 V |
| Supply Voltage (VPOS) | 2.7 – 5.5 V |
| Quiescent Current | ≈3 mA (typical) |
Source: Analog Devices AD8314 Logarithmic Amplifier Datasheet
All Analog Devices AD8314 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical response time for a 10 dB step?
The response time is about 70 ns for a 10 dB step.
What supply voltage is required for the AD8314?
The device requires a supply voltage between 2.7 V and 5.5 V.
From: Analog Devices AD8314 RF Detector/Controller Datasheet Rev B
How fast does the AD8314 respond to a 10 dB input step?
Its response time is 70 ns for a 10 %‑90 % transition.
From: Analog Devices AD8314 RF Detector/Controller Datasheet Rev B
What is the typical dynamic range of the AD8314?
The AD8314 provides a typical dynamic range of 45 dB.
What temperature range can the AD8314 operate in?
It operates from –30 °C to +85 °C.
What frequency range does the AD8314 cover?
It operates from 100 MHz up to 2.7 GHz.
From: Analog Devices AD8314 RF Detector/Controller Datasheet
