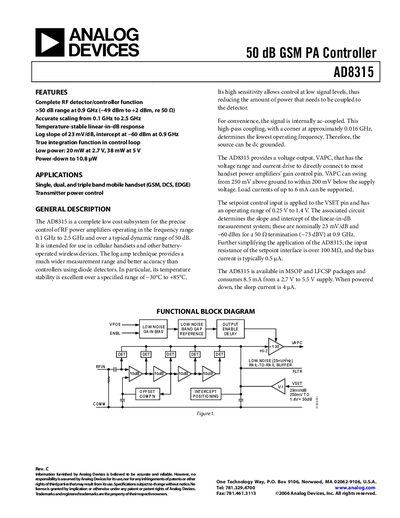

Analog Devices AD8315 RF Detector/Controller Product Handbook
The AD8315 is a complete low‑cost subsystem for precise control of RF power amplifiers in the 0.1 GHz‑2.5 GHz range, offering a typical 50 dB dynamic range. It is intended for cellular handsets and other battery‑operated wireless devices, with temperature‑stable linear‑in‑dB response.
The device supplies a voltage output (VAPC) that can directly drive handset power‑amplifier gain pins, and a setpoint input (VSET) with a 0.25 V‑1.4 V range. Pin functions, typical performance curves, and ordering options are detailed in the handbook.
Analog Devices AD8315 specifications
| Frequency Range | 0.1 GHz – 2.5 GHz |
|---|---|
| Supply Voltage (VPOS) | 2.7 V – 5.5 V |
| Quiescent Current (ENBL high) | 8.5 mA typical |
| Input Resistance (VSET) | 100 kΩ |
| Logarithmic Slope | 23 mV/dB |
Source: Analog Devices AD8315 RF Detector/Controller Product Handbook
All Analog Devices AD8315 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the dynamic range of the AD8315?
The AD8315 provides a dynamic range of greater than 50 dB.
From: Analog Devices AD8315 RF Detector/Controller Product Handbook
What supply voltage does the AD8315 operate from?
It operates from a supply voltage between 2.7 V and 5.5 V.
From: Analog Devices AD8315 RF Detector/Controller Product Handbook
What is the supply voltage range for the AD8315?
The AD8315 operates from 2.7 V up to 5.5 V supply voltage.
What is the typical quiescent current when the device is enabled?
When ENBL is high, the quiescent current is typically between 8.5 mA and 10.7 mA.
What is the operating frequency range of the AD8315?
The AD8315 operates from 0.1 GHz up to 2.5 GHz.
From: Analog Devices AD8315 RF Detector/Controller Datasheet
What supply voltage does the AD8315 require?
It requires a supply voltage between 2.7 V and 5.5 V.
From: Analog Devices AD8315 RF Detector/Controller Datasheet
