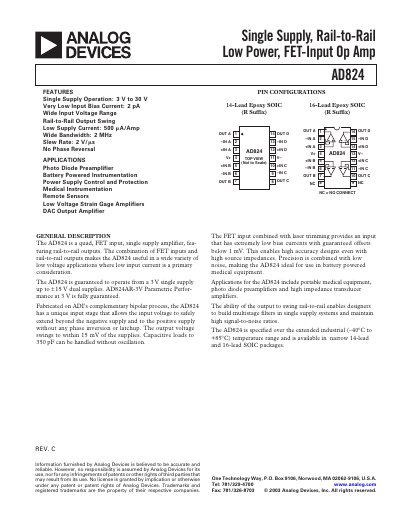

Analog Devices AD824 Datasheet
The AD824 is a quad, FET‑input operational amplifier designed for low‑voltage applications. It operates from a single 3 V supply up to 30 V, or ±15 V dual supplies, and provides rail‑to‑rail output swing within 15 mV of the supply rails. Key features include a very low input bias current of 2 pA, offset voltage as low as 0.1 mV, 2 MHz bandwidth, and a 2 V/µs slew rate.
Typical applications cover photo‑diode preamplifiers, battery‑powered instrumentation, medical devices, and precision sample‑and‑hold circuits. The device is offered in 14‑lead and 16‑lead SOIC packages suitable for surface‑mount designs.
Analog Devices AD824 specifications
| Supply Voltage Range | 3 V to 30 V (single) / ±15 V (dual) |
|---|---|
| Input Bias Current | Typical 2 pA |
| Bandwidth | 2 MHz |
| Slew Rate | 2 V/µs |
| Output Swing | Within 15 mV of supply rails |
Source: Analog Devices AD824 Datasheet
