Start here

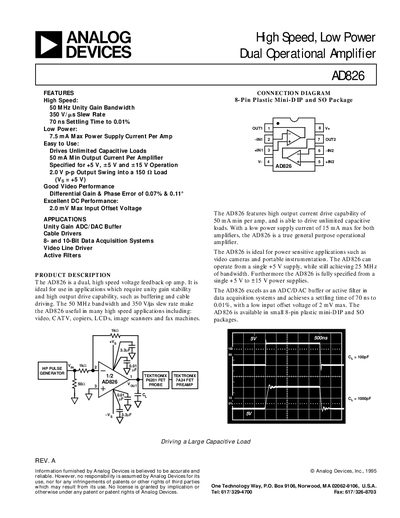

Analog Devices AD826 Dual Operational Amplifier Datasheet
The AD826 is a dual, high‑speed voltage‑feedback op‑amp designed for unity‑gain stability and high output‑drive capability. It operates from a single +5 V supply up to +15 V and is suited for video, CATV, copiers, LCDs, image scanners, and other high‑speed applications.
Key specifications include a typical unity‑gain bandwidth of 35 MHz at +5 V (50 MHz at +15 V), a slew rate of 200 V/µs, 50 mA minimum output current per amplifier, and a low input offset voltage of 2 mV. The device is offered in 8‑pin plastic DIP and SOIC packages with ordering codes AD826AN, AD826AR, and AD826AR‑REEL.
Analog Devices AD826 specifications
| Unity Gain Bandwidth (typ) | 35 MHz @ +5 V, 50 MHz @ +15 V |
|---|---|
| Output Current (min) | 50 mA per amplifier |
| Input Offset Voltage (max) | 2 mV |
| Quiescent Current per Amplifier | 6.6 mA @ +5 V |
Source: Analog Devices AD826 Dual Operational Amplifier Datasheet
All Analog Devices AD826 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current per amplifier?
Each amplifier can source a minimum of 50 mA output current.
From: Analog Devices AD826 Dual Operational Amplifier Datasheet
What supply voltage ranges does the AD826 support?
It operates with a dual supply of +2.5 V to +18 V or a single supply of +5 V to +36 V.
From: Analog Devices AD826 Dual Operational Amplifier Datasheet
How much output current can each amplifier deliver?
Each amplifier can source a minimum of 50 mA continuously, with a short‑circuit capability of up to 90 mA.
From: Analog Devices AD826 Dual Operational Amplifier Datasheet
What supply voltages are supported by the AD826?
The device operates from a dual supply of +2.5 V to +18 V or from a single supply ranging from +5 V up to +15 V.
From: Analog Devices AD826 Dual Operational Amplifier Datasheet
What is the maximum output current of the AD826?
Each amplifier can source up to 50 mA, allowing it to drive unlimited capacitive loads.
From: Analog Devices AD826 High-Speed Low-Power Dual Operational Amplifier Handbook
What is the unity‑gain bandwidth of the AD826?
The AD826 provides a unity‑gain bandwidth of about 50 MHz.
