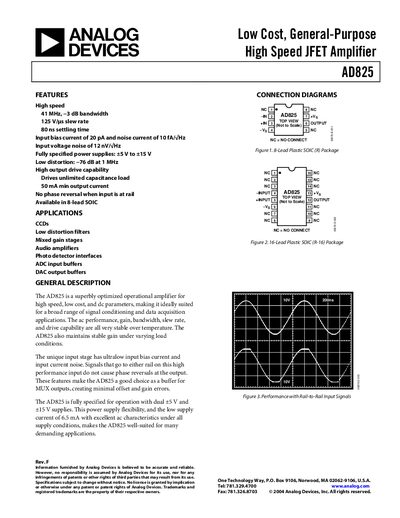

Analog Devices AD825 Datasheet
The AD825 is a general‑purpose, high‑speed JFET amplifier offered by Analog Devices. It operates from ±5 V to ±15 V supplies, provides low input bias current, low noise, and can drive heavy capacitive loads.
The datasheet includes specifications, absolute maximum ratings, pin configurations, performance graphs, application notes such as low‑pass filter design, and ordering information for 8‑lead and 16‑lead SOIC packages.
Analog Devices AD825 specifications
| Unity Gain Bandwidth | 23‑26 MHz (±15 V supply) |
|---|---|
| Input Bias Current | 15‑40 pA (±15 V supply) |
| Quiescent Supply Current | 6.5‑7.2 mA (±15 V supply) |
| Output Current | 50 mA (±15 V supply) |
| Maximum Supply Voltage | ±18 V |
| Package Options | 8‑lead SOIC (R‑8) and 16‑lead SOIC (R‑16) |
Source: Analog Devices AD825 Datasheet
All Analog Devices AD825 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the unity‑gain bandwidth of the AD825?
It ranges from 23 MHz (minimum) to 26 MHz (typical) when powered from ±15 V.
What is the maximum allowed supply voltage for the AD825?
The absolute maximum supply voltage is ±18 V.
What is the unity gain bandwidth of the AD825?
The AD825 has a unity gain bandwidth of 23 MHz to 26 MHz when powered at +15 V.
What is the input bias current of the AD825?
The input bias current ranges from 15 pA to 40 pA with a +15 V supply.
