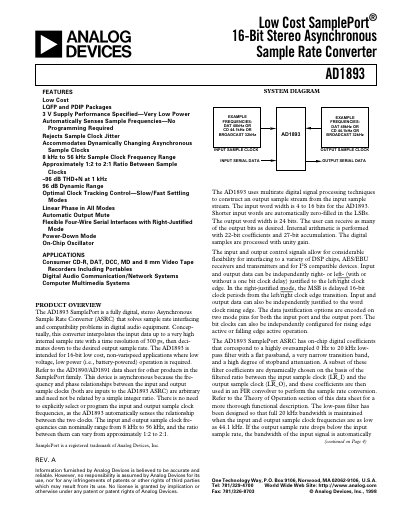

Analog Devices AD1893 SamplePort Datasheet Rev A
The AD1893 SamplePort is a fully digital, stereo asynchronous sample‑rate converter designed for low‑cost, low‑power audio applications. It automatically senses input and output sample frequencies, rejects jitter, and supports dynamic clock tracking with slow‑ and fast‑settling modes.
The document provides detailed specifications, pin configurations, digital timing parameters, power consumption data, and theory of operation for designers and engineers.
Analog Devices AD1893 specifications
| Dynamic Range | 96 dB |
|---|---|
| THD+N (1 kHz Full‑Scale Input) | -94 dB |
| Supply Voltage (Test Condition) | +3.0 V |
| Package Options | AD1893JN Plastic DIP N‑28, AD1893JST LQFP ST‑44 |
| Typical Operating Current (VDD = +5.0 V) | 40 mA |
| Typical Power‑Down Current (VDD = +5.0 V) | 2.5 mA |
| Sample Clock Frequency Range | 8 kHz to 56 kHz |
All Analog Devices AD1893 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the sample clock frequency range of the AD1893?
The input and output sample clock frequencies can nominally range from 8 kHz to 56 kHz.
Which package options are available for the AD1893?
The AD1893 is offered in a 28‑lead plastic DIP (AD1893JN) and a 44‑lead LQFP (AD1893JST).
What is the typical power‑down current at a 3 V supply?
Typical power‑down current is about 0.5 mA (minimum 0.5 mA, maximum 1.0 mA).
