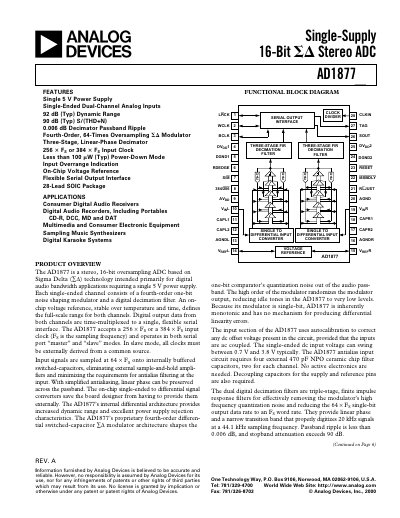

Analog Devices AD1877 16‑Bit Stereo ADC Datasheet
The AD1877 is a stereo, 16‑bit oversampling ADC based on Sigma‑Delta technology, intended for digital audio applications. It operates from a single 5 V supply, provides up to 92 dB dynamic range, and features a flexible serial interface that can operate in master or slave mode.
Key features include a fourth‑order one‑bit modulator, a three‑stage FIR decimation filter with 64× oversampling, on‑chip voltage reference, and single‑ended to differential converters. The device requires four external 470 pF NPO filter capacitors and supports input clocks of 12.288 MHz (256×FS) or 18.432 MHz (384×FS).
Analog Devices AD1877 specifications
| Supply Voltage | 5.0 V |
|---|---|
| Dynamic Range | 92 dB (Typ) |
| Signal‑to‑Noise Ratio (S/(THD+N)) | 90 dB (Typ) |
| Input Voltage High | 2.4 V |
| Input Voltage Low | 0.8 V |
| Analog Current | 35‑43 mA |
| Digital Current | 16‑20 mA |
| Decimation Factor | 64 |
| Passband Ripple | 0.006 dB |
| Stopband Attenuation | 90 dB |
