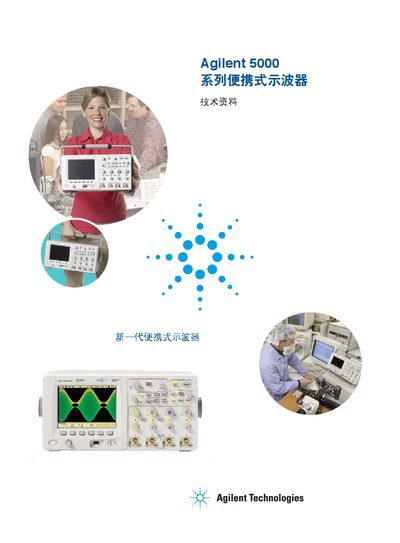

Agilent 5000 Series Portable Oscilloscope is the new generation of portable oscilloscope, with bandwidth of 100 MHz, 300 MHz and 500 MHz, 2 or 4 channels, MegaZoom III storage and display technology, deep up to 1 Mpts sample storage, up to 100,000 waveforms per second of real-time capture rate, 256 levels of brightness (luminance) high-definition XGA (1024 x 768) display, up to 12-bit vertical resolution, even single sampling can achieve this level, complete standard interfaces - standard (USB, LAN, GPIB, XGA display output), full remote control function (including web browser), LXI C-class instrument standard, 11 languages of user manual and oscilloscope online help, safety environment options
The 5000 Series portable oscilloscopes offer bandwidths of 100 MHz, 300 MHz or 500 MHz, with 2 or 4 channels, 2 GSa/s sampling, up to 1 Mpts storage depth and a capture rate of up to 100,000 waveforms per second. MegaZoom III technology delivers high‑resolution 12‑bit vertical performance and a bright XGA (1024 × 768) display.
Connectivity includes three USB host ports, a USB device port, 10/100 Mbit LAN, GPIB and XGA video output, all compliant with LXI Class C standards. Optional accessories such as safety‑environment mode (SEC), probe kits, and software tools are listed, and mechanical specifications (size, weight, power) are provided for field deployment. This manual is written in Chinese.
| Bandwidth | 100 MHz, 300 MHz, 500 MHz |
|---|---|
| Channels | 2 or 4 |
| Storage Depth | up to 1 Mpts |
| Capture Rate | up to 100,000 waveforms per second |
| Display Resolution | 256‑level brightness XGA (1024 × 768) |
| Vertical Resolution | 12 bits |
| Interfaces | USB (3 ports), LAN, GPIB, XGA video output |
| Dimensions (without handle) | 35.4 cm × 18.8 cm × 17.4 cm |
| Weight | 4.1 kg (net) |
| Power Consumption | Maximum 120 W |
| Operating Temperature | -10 °C to +55 °C |
The oscilloscope is offered with bandwidths of 100 MHz, 300 MHz, or 500 MHz.
Models are available with either 2 or 4 input channels.
Each unit provides three USB host ports, one USB device port, 10/100 Mbit LAN, GPIB, and an XGA video output.
The oscilloscope can capture up to 100,000 waveforms per second in real‑time mode.
