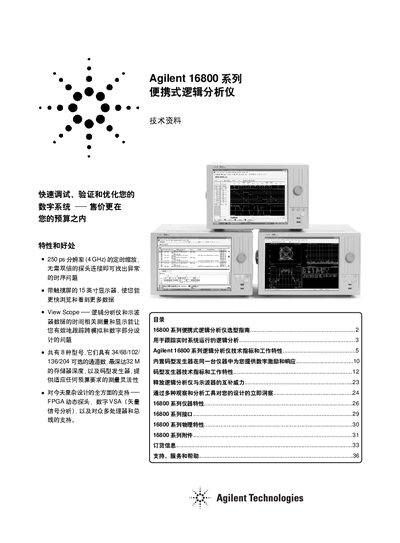

Agilent 16800 Series Portable Logic Analyzers quickly debug, verify, and optimize your digital systems — at a price that fits your budget. This document provides information on the 16800 Series Logic Analyzers, including technical specifications, operational characteristics, integrated pattern generators, instrument features, interfaces, physical characteristics, accessories, ordering information, support, service, and help.
The selection guide details the Agilent 16800 series portable logic analyzers, highlighting their high‑resolution timing zoom (250 ps, 4 GHz) and flexible channel configurations ranging from 34 to 204 channels. It describes built‑in code generator options for models 16821A, 16822A and 16823A, which add a 48‑channel code generator for advanced digital stimulus.
Technical specifications such as default 64 K sample memory, optional expansion up to 32 M samples, voltage threshold range of –5 V to +5 V, and various interface and accessory options are listed, along with ordering information and support services. This manual is written in Chinese.
| Timing resolution | 250 ps (4 GHz) |
|---|---|
| Maximum memory depth (optional) | 32 M samples |
| Channel count options | 34, 68, 102, 136, 204 |
| Voltage threshold range | -5 V to +5 V |
It provides a timing resolution of 250 ps, equivalent to a 4 GHz timing zoom.
The series offers models with 34, 68, 102, 136, or 204 channels.
Up to 32 M samples can be configured for deep storage.
