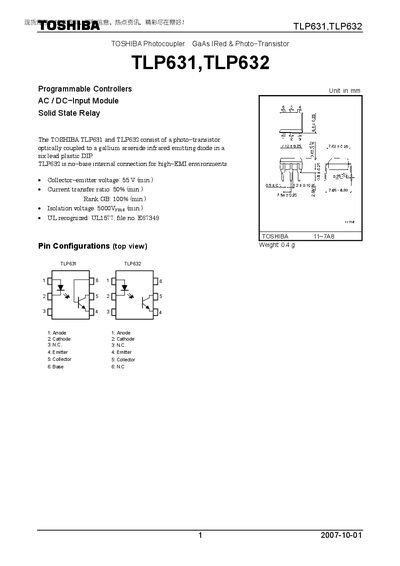

Toshiba TLP631/TLP632 Photocoupler Datasheet
The document provides detailed electrical characteristics, absolute maximum ratings, and recommended operating conditions for the Toshiba TLP631 and TLP632 GaAs infrared photocouplers. It includes pin configurations, isolation specifications, switching times, and usage restrictions for general electronics applications.
Key data such as forward current, isolation voltage, collector‑emitter voltage, power dissipation, and current transfer ratio are listed, along with guidance on reliable design and handling of the devices.
Toshiba TLP632 specifications
| Forward current (IF) | 60 mA |
|---|---|
| Isolation voltage | 5000 V rms (min) |
| Power dissipation (Po) | 150 mW |
| Supply voltage (Voc) | 5 V to 24 V |
| Current transfer ratio (CTR) | 50 % (min) |
All Toshiba TLP632 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum isolation voltage for the TLP631/TLP632?
The isolation voltage is specified as 5000 V rms (minimum) for AC, 1‑minute tests.
What supply voltage range is recommended for these photocouplers?
The recommended supply voltage range is 5 V to 24 V.
What is the maximum collector‑emitter voltage the devices can handle?
The devices are rated for a collector‑emitter voltage of at least 55 V.
What supply voltage range can be used with these optocouplers?
They operate with a supply voltage between 5 V and 24 V.
