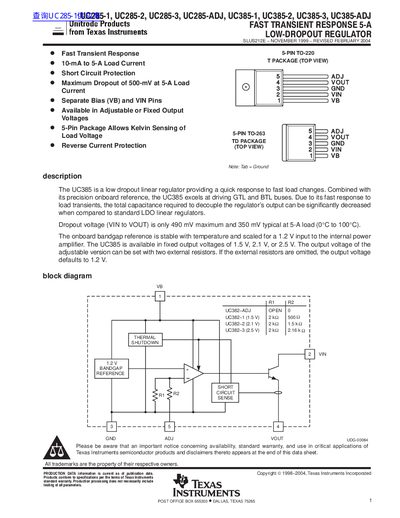

Texas Instruments UC285/UC385 Low-Dropout Regulator Datasheet
The UC285 and UC385 are low-dropout linear regulators designed to provide a quick response to fast load changes. They feature a precision onboard bandgap reference and are optimized for driving GTL and BTL buses. The devices are available in fixed output voltages of 1.5 V, 2.1 V, and 2.5 V, as well as an adjustable version that defaults to 1.2 V if external resistors are omitted.
Read onlineTexas Instruments UC2853 specifications
| Maximum Load Current | 5 A |
|---|---|
| Maximum Dropout Voltage (VIN to VOUT) | 500 mV |
| Fixed Output Voltages | 1.5 V, 2.1 V, 2.5 V |
| Default Adjustable Output Voltage | 1.2 V |
| Operating Temperature Range (UC385) | 0°C to 100°C |
| Operating Temperature Range (UC285) | -40°C to 100°C |
Source: Texas Instruments UC285/UC385 Low-Dropout Regulator Datasheet
