TEXAS INSTRUMENTS TPS75515 TPS75518 TPS75525 TPS75533 handbook

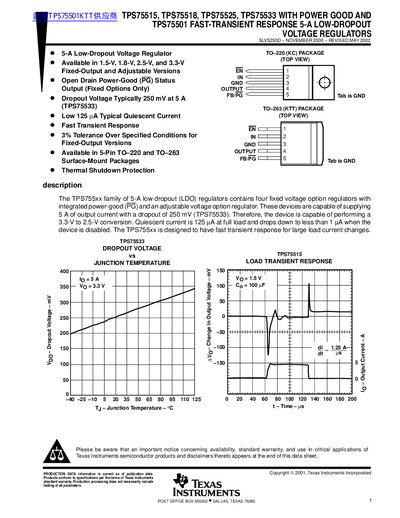

The TPS755xx family of 5-A low dropout (LDO) regulators includes four fixed voltage option regulators with integrated power-good (PG) and an adjustable voltage option regulator. These devices are capable of supplying 5 A of output current with a dropout of 250 mV for the TPS75533 model. The family is designed to have fast transient response for large load current changes and features thermal shutdown protection.
Read onlineTexas Instruments TPS75515 specifications
| Output Current | 5 A |
|---|---|
| Dropout Voltage | 250 mV |
| Quiescent Current | 125 µA |
| Output Voltage Range | 1.22 V to 5 V |
Source: TEXAS INSTRUMENTS TPS75515 TPS75518 TPS75525 TPS75533 handbook
All Texas Instruments TPS75515 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the dropout voltage for the TPS75533?
The dropout voltage is typically 250 mV at 5 A output current.
From: TEXAS INSTRUMENTS TPS75515 TPS75518 TPS75525 TPS75533 handbook
What are the available fixed output voltages?
The family includes fixed voltage options of 1.5 V, 1.8 V, 2.5 V, and 3.3 V.
From: TEXAS INSTRUMENTS TPS75515 TPS75518 TPS75525 TPS75533 handbook
Is the TPS75501 adjustable?
Yes, it is programmable over a range of 1.22 V to 5 V.
What happens when the enable pin is high?
The device enters shutdown mode, reducing quiescent current to less than 1 µA.
