Key facts
- Brand
- Texas Instruments
- Model
- TMS320P25
- Industry
- Industrial
- Documents
- 3
- Languages
- EN
- Last added
- 2012-06-12
Start here

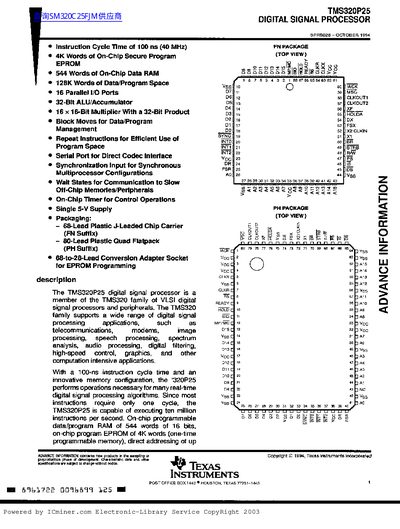

Texas Instruments TMS320P25 Digital Signal Processor Datasheet
The document describes the TMS320P25 digital signal processor (DSP), a member of the TMS320 family utilizing a modified Harvard architecture. It features a 100-ns instruction cycle time and supports applications such as telecommunications, image processing, and speech analysis.
Read onlineTexas Instruments TMS320P25 specifications
| Instruction Cycle Time | 100 ns (40 MHz) |
|---|---|
| On-Chip Data RAM | 544 Words |
| Data/Program Space | 128K Words |
| Parallel I/O Ports | 16 |
| ALU/Accumulator Size | 32-Bit |
| Multiplier Capability | 16x 16-Bit |
Source: Texas Instruments TMS320P25 Digital Signal Processor Datasheet
All Texas Instruments TMS320P25 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum instruction cycle time for the TMS320P25?
The processor has an instruction cycle time of 100 ns.
From: Texas Instruments TMS320P25 Digital Signal Processor Datasheet
How many words of on-chip data RAM are available in the TMS320P25?
The device contains 544 words of on-chip data RAM.
From: Texas Instruments TMS320P25 Digital Signal Processor Datasheet
What is the instruction cycle time of the TMS320P25?
The instruction cycle time is 100 ns, corresponding to a 40 MHz clock.
From: Texas Instruments TMS320P25 Digital Signal Processor Datasheet
How many parallel I/O ports does the TMS320P25 provide?
It provides 16 parallel I/O ports.
From: Texas Instruments TMS320P25 Digital Signal Processor Datasheet
