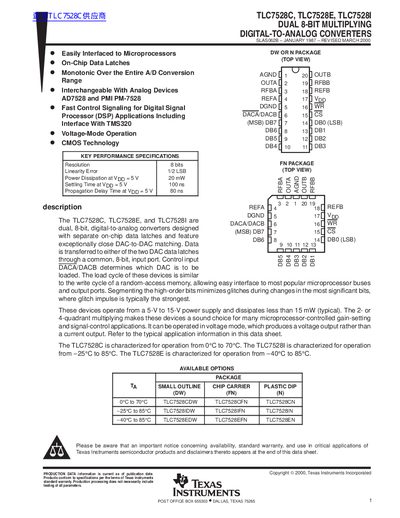

TEXAS INSTRUMENTS TLC7528C TLC7528E TLC7528I DUAL 8-BIT MULTIPLYING DIGITAL-TO-ANALOG CONVERTERS datasheet
Datasheet 17 pages · 245 KB · EN
The TLC7528C, TLC7528E, and TLC7528I are dual, 8-bit, digital-to-analog converters designed with separate on-chip data latches and exceptionally close DAC-to-DAC matching. These devices operate from a 5-V to 15-V power supply and feature 2- or 4-quadrant multiplying capabilities, making them suitable for microprocessor-controlled gain-setting and signal-control applications. They can be operated in voltage mode to produce a voltage output rather than a current output.
Read onlineTexas Instruments TLC7528C specifications
| Resolution | 8 bits |
|---|---|
| Linearity Error | 1/2 LSB |
| Power Dissipation (Vpp = 5 V) | 20 mW |
| Settling Time (Vpp = 5 V) | 100 ns |
| Propagation Delay Time (Vpp = 5 V) | 80 ns |
| Supply Voltage Range | 5 V to 15 V |
| Operating Temperature (TLC7528I) | -25°C to 85°C |
| Operating Temperature (TLC7528E) | -40°C to 85°C |
All Texas Instruments TLC7528C documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the TLC7528 series?
The resolution is 8 bits.
What is the settling time at a 5V supply?
The settling time is 100 ns at Vpp = 5 V.
What supply voltage range do the TLC7528 devices operate from?
They operate from 4.75 V to 5.25 V or from 14.5 V to 15.5 V depending on the application.
What is the typical settling time of the DACs?
The typical settling time is 100 ns.
