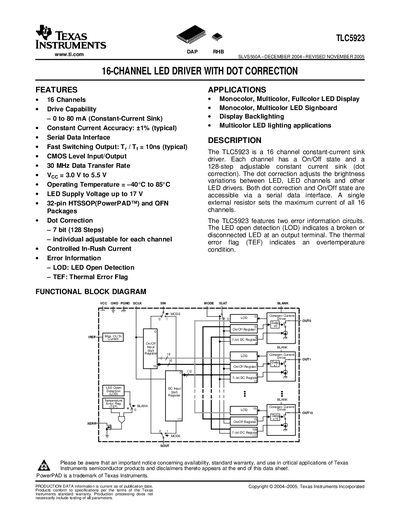

Texas Instruments TLC5923 16‑Channel LED Driver Datasheet
The TLC5923 is a 16‑channel constant‑current sink driver designed for LED display and lighting applications. Each channel can be turned on/off and individually adjusted with 7‑bit dot‑correction (128 steps) via a serial data interface. The device also includes LED open detection (LOD) and a thermal error flag (TEF) for fault monitoring.
The datasheet provides detailed electrical characteristics, recommended operating conditions, package options (32‑pin HTSSOP with PowerPAD™ and 32‑pin QFN), and mechanical dimensions. It also describes the serial interface timing, pin functions, and switching characteristics needed for system integration.
Texas Instruments TLC5923 specifications
| Number of channels | 16 |
|---|---|
| Drive capability | 0 to 80 mA (Constant‑Current Sink) |
| Constant current accuracy | +1 % (typical) |
| Data transfer rate | 30 MHz |
| Supply voltage (Voc) | 3.0 V to 5.5 V |
| Operating temperature range | -40 °C to 85 °C |
| LED supply voltage | up to 17 V |
| Dot‑correction resolution | 7 bit (128 steps) |
| Package options | 32‑pin HTSSOP (PowerPAD) and 32‑pin QFN |
| Maximum power dissipation (25 °C) | 3.9 W |
