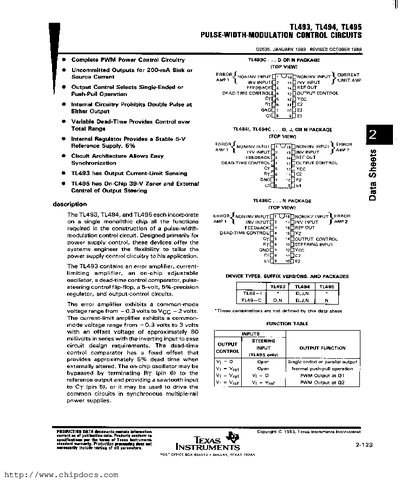

Texas Instruments TL493/TL494/TL495 Datasheet
The TL493, TL494, and TL495 are monolithic PWM control ICs that integrate error amplifiers, current‑limiting amplifiers, on‑chip oscillators, dead‑time control comparators, and output‑control circuits. They support push‑pull or single‑ended operation and provide uncommitted outputs for flexible power‑supply designs.
The document provides absolute maximum ratings, recommended operating conditions, electrical characteristics, and typical performance graphs such as oscillator frequency versus timing resistance and amplifier voltage gain versus frequency. It also includes parameter test conditions for output voltage, current limits, timing components, and Zener diode specifications for the TL495 variant.
Texas Instruments TL494 specifications
| Supply voltage (VCC) | 7 V to 40 V |
|---|---|
| Operating temperature range (TL494) | -25 °C to 85 °C |
| On‑chip Zener voltage (TL495) | 39 V |
All Texas Instruments TL494 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range is recommended for the TL493/TL494/TL495 devices?
The recommended supply voltage (VCC) is from 7 V to 40 V.
What is the operating temperature range for the TL494?
The TL494 is specified for operation from –25 °C to 85 °C.
What is the recommended supply voltage range for the TL494?
The TL494 operates with a recommended supply voltage between 7 V and 40 V.
What package types are offered for the TL494?
The TL494 is available in D, DB, NS, and PW surface‑mount packages, which can be supplied taped and reeled.
What supply voltage range do the TL493, TL494, and TL495 support?
They operate from 7 V up to 40 V supply voltage.
What is the oscillator frequency range for these devices?
The on‑chip oscillator can be set between 1 kHz and 300 kHz.
