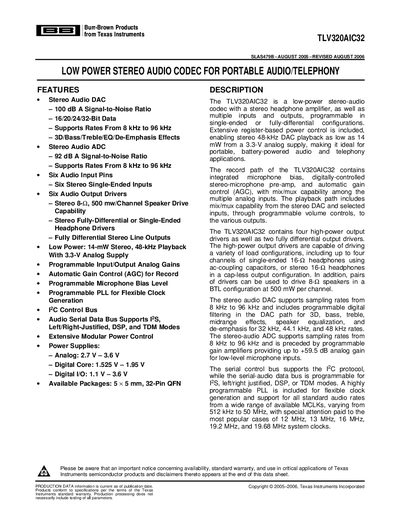

Texas Instruments TLV320AIC32 Audio Codec Datasheet
The TLV320AIC32 is a low‑power stereo audio codec that includes a stereo DAC, stereo ADC, headphone amplifier, and multiple analog inputs and outputs. It supports sample rates from 8 kHz to 96 kHz and offers programmable gain, automatic gain control, and flexible clock generation.
The device is supplied in a 5 × 5 mm 32‑lead QFN package, operates from 2.7 V‑3.6 V analog supply and 1.525 V‑1.95 V digital core supply, and provides extensive register‑based power control for power‑efficient operation in battery‑powered applications.
Texas Instruments TLV320AIC32 specifications
| Analog supply voltage range | 2.7 V – 3.6 V |
|---|---|
| Digital core supply voltage range | 1.525 V – 1.95 V |
| Audio DAC SNR | 100 dB A |
| Audio ADC SNR | 92 dB A |
| Supported audio sample rates | 8 kHz – 96 kHz |
| Operating temperature range | -40 °C to +85 °C |
All Texas Instruments TLV320AIC32 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What analog supply voltage does the TLV320AIC32 require?
The codec operates from an analog supply voltage between 2.7 V and 3.6 V.
What audio sample rates are supported?
It supports audio sample rates from 8 kHz up to 96 kHz.
What is the analog supply voltage range for the TLV320AIC32?
The analog supply voltage range is 2.7 V to 3.6 V.
From: Texas Instruments TLV320AIC32 Low Power Stereo Audio Codec Datasheet
Which package does the TLV320AIC32 use?
It is offered in a 5 × 5 mm, 32‑lead QFN package.
From: Texas Instruments TLV320AIC32 Low Power Stereo Audio Codec Datasheet
