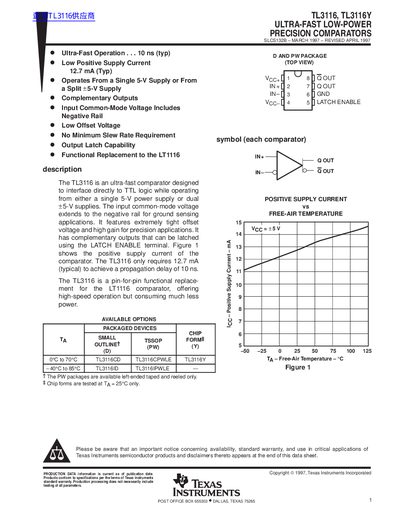

TEXAS INSTRUMENTS TL3116 TL3116Y ULTRA-FAST LOW-POWER PRECISION COMPARATORS handbook
The TL3116 is an ultra-fast comparator designed to interface directly to TTL logic while operating from a single 5-V power supply or dual +5-V supplies. It features extremely tight offset voltage and high gain for precision applications, with complementary outputs that can be latched using the LATCH ENABLE terminal. The device offers a functional replacement for the LT1116, providing high-speed operation with significantly lower power consumption.
Read onlineTexas Instruments TL3116Y specifications
| Propagation delay (typ) | 10 ns |
|---|---|
| Positive supply current (typ) | 12.7 mA |
| Output current (max) | ±20 mA |
| Supply voltage range | ±5 V (or single 5 V) |
| Operating temperature range | –40 °C to 85 °C |
Source: TEXAS INSTRUMENTS TL3116 TL3116Y PRECISION COMPARATORS
All Texas Instruments TL3116Y documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Can the TL3116 operate from a single 5-V supply?
Yes, it operates from a single 5-V power supply or from dual +5-V supplies.
From: TEXAS INSTRUMENTS TL3116 TL3116Y ULTRA-FAST LOW-POWER PRECISION COMPARATORS handbook
What is the typical propagation delay of the TL3116?
The device achieves a typical propagation delay of 10 ns.
From: TEXAS INSTRUMENTS TL3116 TL3116Y ULTRA-FAST LOW-POWER PRECISION COMPARATORS handbook
What is the typical propagation delay of the TL3116?
The TL3116 has a typical propagation delay of 10 ns.
From: TEXAS INSTRUMENTS TL3116 TL3116Y PRECISION COMPARATORS
What supply voltages can the TL3116 operate from?
It can operate from a single 5‑V supply or from split ±5‑V supplies.
From: TEXAS INSTRUMENTS TL3116 TL3116Y PRECISION COMPARATORS
