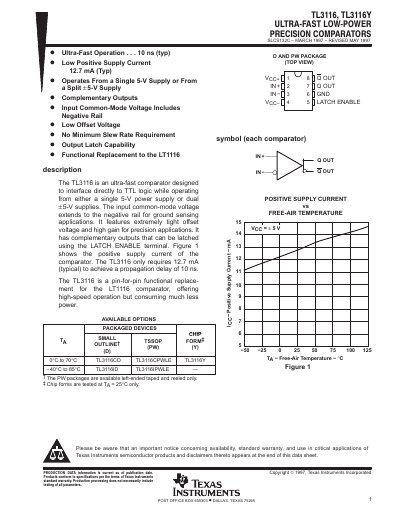

The TL3116 is an ultra-fast comparator designed to interface directly to TTL logic while operating from either a single 5-V power supply or dual ±5-V supplies. The input common-mode voltage extends to the negative rail for ground sensing applications. It features extremely tight offset voltage and high gain for precision applications. It has complementary outputs that can be latched using the LATCH ENABLE terminal.
The TL3116 ultra‑fast comparator is designed for precision applications, operating from a single 5‑V supply or a split ±5‑V supply. It features input common‑mode voltage that includes the negative rail, low offset voltage, and complementary outputs with latch capability.
Key specifications include a typical propagation delay of 10 ns, positive supply current of 12.7 mA, and an operating temperature range of –40 °C to 85 °C. The device is offered in various small‑outline plastic packages such as TSSOP and PW, with detailed mechanical dimensions provided.
| Propagation delay (typ) | 10 ns |
|---|---|
| Positive supply current (typ) | 12.7 mA |
| Output current (max) | ±20 mA |
| Supply voltage range | ±5 V (or single 5 V) |
| Operating temperature range | –40 °C to 85 °C |
The TL3116 has a typical propagation delay of 10 ns.
It can operate from a single 5‑V supply or from split ±5‑V supplies.
The device can source or sink up to ±20 mA of output current.
It is rated for operation from –40 °C to 85 °C.
