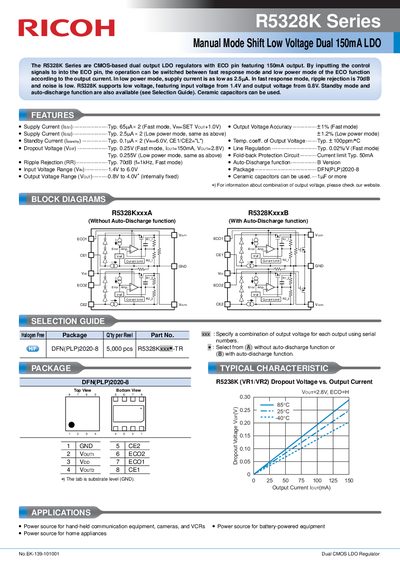

The R5328K series are CMOS-based dual output LDO regulators with ECO pin featuring 150mA output. By inputting the control signals to into the ECO pin, the operation can be switched between fast response mode and low power mode of the ECO function according to the output current. In low power mode, supply current is as low as 2.5μA. In fast response mode, ripple rejection is 70dB and noise is low. R5328K supports low voltage, featuring input voltage from 1.4V and output voltage from 0.8V. Standby mode and auto-discharge function are also available (see Selection Guide). Ceramic capacitors can be used.
The R5328K Series are CMOS-based dual output Low Dropout (LDO) regulators featuring an ECO pin. This pin allows the operation to be switched between fast response mode and low power mode based on the output current. In low power mode, supply current is as low as 2.5µA.
| Output Configuration | Dual output LDO regulators |
|---|---|
| Supply Current (Fast Mode) | Typ. 65nA x 2 |
| Supply Current (Low Power Mode) | Typ. 2.5µA x 2 |
| Standby Current | Typ. 0.1µA x 2 |
| Input Voltage Range | 1.4V to 6.0V |
| Output Voltage Range | 0.8V to 4.0V (internally fixed) |
| Dropout Voltage (Fast Mode) | Typ. 0.25V |
| Ripple Rejection (Fast Mode) | 70dB |
| Package Type | DFN(PLP)2020-8 |
The device supports an input voltage starting from 1.4V.
In low power mode, the supply current is as low as 2.5µA per channel.
