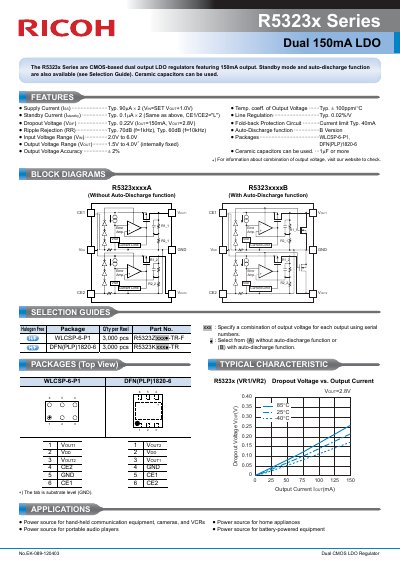

The R5323x Series is a CMOS-based dual output LDO regulator with 150mA output. It also features standby mode and auto-discharge function. Ceramic capacitors can be used.
The R5323x Series are CMOS-based dual output Low Dropout (LDO) regulators featuring a 150mA output current. The series includes two variants: one without an auto-discharge function and one with it, both utilizing ceramic capacitors.
Key specifications include an input voltage range of 2.0V to 6.0V and fixed internal output voltages ranging from 1.5V to 4.0V. The devices offer a typical standby current of 0.1A per channel and feature fold-back protection circuits.
| Output Current | 150mA |
|---|---|
| Input Voltage Range | 2.0V to 6.0V |
| Output Voltage Range | 1.5V to 4.0V |
| Dropout Voltage | Typ. 0.22V |
| Standby Current | Typ. 0.1A x 2 |
The R5323x Series provides a typical output current of 150mA per channel.
The regulator accepts an input voltage range starting at a minimum of 2.0V.
The typical dropout voltage is 0.22V under these specific conditions.
