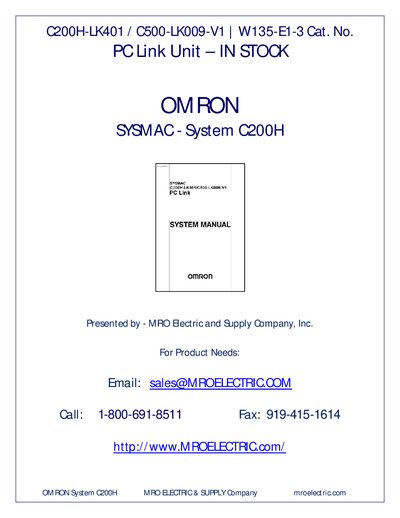

OMRON SYSMAC C200H-LK401/C500-LK009-V1 PC Link System Manual

About this manual

This manual covers safety precautions, system design, data exchange, and component details for the OMRON SYSMAC C200H-LK401 and C500-LK009-V1 PC Link units. It explains the meaning of symbols such as DANGER, WARNING, and CAUTION, and defines abbreviations like “PC” for Programmable Controller.

The document includes sections on installation and mounting, programming considerations to reduce response times, error processing with flag tables, and inspection and maintenance procedures. Appendices provide standard model information and specifications, while the revision history records updates made since the original 1990 publication.

What's inside

• Precautions
• Introduction
• System Design
• Data Exchange and Operations
• System Installation
• Programming Considerations
• Error Processing
• Inspection and Maintenance
• Appendix
