G6K(U)-2F-RF(-S) is a surface mount high frequency relay launched by Omron. It has excellent 1GHz band high frequency characteristics, ultra-compact design, high sensitivity, and space saving.
The Omron G6KU-2F-RF-S is a miniature 2‑pole high‑frequency surface‑mount relay offering low insertion loss and high isolation. It is designed for applications requiring up to 1 GHz performance, such as test equipment and video devices.

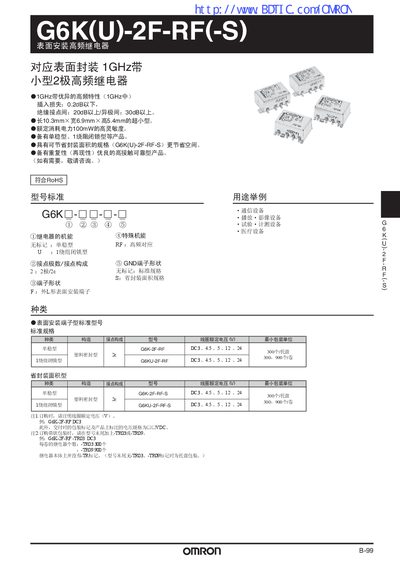

The handbook provides electrical characteristics, mechanical dimensions, packaging options, recommended soldering profiles and handling guidelines to ensure reliable operation in demanding environments. This manual is written in Chinese.
| Insertion loss | < 0.2 dB |
|---|---|
| Isolation (same‑pole contacts) | > 20 dB |
| Isolation (different‑pole contacts) | > 30 dB |
| Contact resistance | > 1 000 MΩ |
| Maximum contact voltage | AC125 V / DC60 V |
| Maximum contact current | 1 A |
| Power consumption (rated) | 100 mW |
| Dimensions (L×W×H) | 10.3 mm × 6.9 mm × 5.4 mm |
| Weight | ≈ 0.95 g |
| Operating temperature range | -40 °C to +70 °C |
| Relative humidity range | 5 % to 85 % RH |
The insertion loss is below 0.2 dB.
Packaging can be ordered with a -TR03 suffix (300 units per roll), -TR09 suffix (900 units per roll), or as standard tray packaging when no -TR suffix is present.
The relay contacts are rated up to AC125 V or DC60 V.
