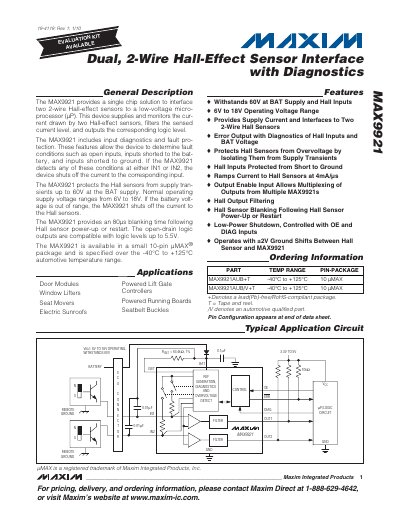

Maxim MAX9921 Dual 2-Wire Hall-Effect Sensor Interface Datasheet
The MAX9921 provides a single‑chip solution for interfacing two 2‑wire Hall‑effect sensors to a low‑voltage microprocessor. It supplies and monitors sensor current, filters the sensed level, and outputs corresponding open‑drain logic signals with diagnostic capabilities.
The device operates from 6 V to 18 V, works over an automotive temperature range of –40 °C to +125 °C, and protects Hall sensors from transients up to 60 V. Features include current ramping at 4 mA/µs, output enable multiplexing, and fault detection for open, short‑to‑battery, or short‑to‑ground conditions.
Maxim MAX9921 specifications
| Operating supply voltage range | 6 V to 18 V |
|---|---|
| Automotive temperature range | -40 °C to +125 °C |
| Package type | 10‑pin µMAX |
| Open‑drain output voltage compatibility | up to 5.5 V |
| Current ramp rate to Hall sensors | 4 mA/µs |
| Shutdown mode supply current | 1 µA |
Source: Maxim MAX9921 Dual 2-Wire Hall-Effect Sensor Interface Datasheet
All Maxim MAX9921 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the MAX9921 operate in?
The MAX9921 operates from 6 V to 18 V supply voltage.
From: Maxim MAX9921 Dual 2-Wire Hall-Effect Sensor Interface Datasheet
How does the MAX9921 protect Hall sensors from overvoltage?
It shuts off current to the sensors when the battery voltage is outside the 6 V‑18 V range and isolates them from transients up to 60 V.
From: Maxim MAX9921 Dual 2-Wire Hall-Effect Sensor Interface Datasheet
What is the maximum supply voltage the MAX9921 can tolerate?
The device can withstand up to 60 V at the battery supply and Hall inputs.
From: Maxim MAX9921 Dual 2-Wire Hall-Effect Sensor Interface Datasheet
How many Hall‑effect sensors can be connected to the MAX9921?
It can interface two 2‑wire Hall‑effect sensors.
From: Maxim MAX9921 Dual 2-Wire Hall-Effect Sensor Interface Datasheet
