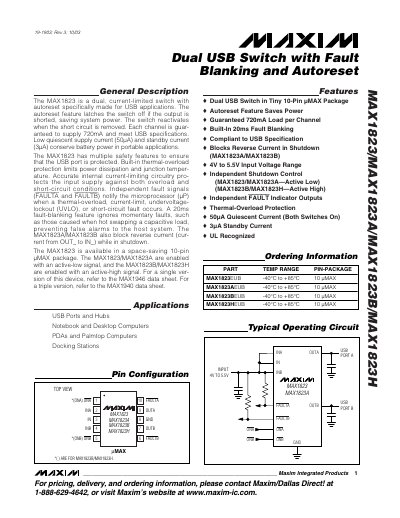

MAXIM MAX1823/MAX1823A/MAX1823B/MAX1823H handbook
The MAX1823 family provides a dual, current‑limited USB switch that automatically latches off on a short‑circuit and restores power when the fault clears. Each channel supplies up to 720 mA, features built‑in thermal‑overload protection, a 20 ms fault‑blanking interval, and independent FAULT_ indicator outputs.
The device operates from a 4.0 V to 5.5 V supply, consumes only 50 µA quiescent current (both channels on) and 100 µA in standby, and is packaged in a space‑saving 10‑pin µMAX footprint. Variants MAX1823A/B block reverse current when disabled, and the part is rated for –40 °C to +85 °C operation.
Maxim MAX1823B specifications
| Supply Voltage Range | 4.0 V to 5.5 V |
|---|---|
| Continuous Load Current | 720 mA per channel |
| Quiescent Supply Current (both channels on) | 50 µA |
| Operating Temperature Range | -40 °C to +85 °C |
All Maxim MAX1823B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous load current per channel?
Each channel can supply a guaranteed 720 mA continuous load current.
What is the fault‑blanking time?
The device includes a built‑in 20 ms fault‑blanking interval to ignore momentary faults.
What is the maximum continuous load current per channel?
Each channel can supply up to 720 mA.
How does the auto‑reset function operate?
When a short‑circuit occurs the switch latches off; it automatically restarts once the fault is removed.
