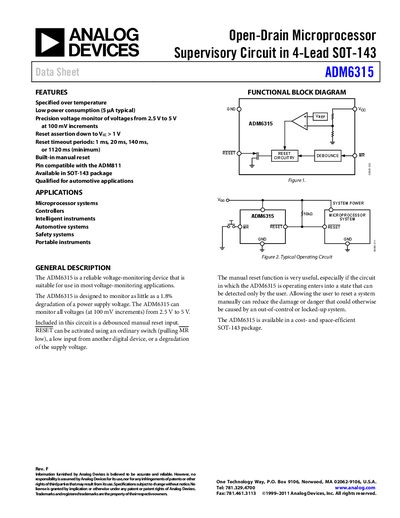

Analog Devices ADM6315 Microprocessor Supervisory Circuit Data Sheet
The ADM6315 is a reliable voltage monitoring device designed to detect power supply degradation as low as 1.8%. It monitors voltages from 2.5 V to 5 V in 100 mV increments and includes a debounced manual reset input (MR) for user intervention. The device is suitable for microprocessor systems, controllers, and safety-critical applications.
Read onlineAnalog Devices ADM6315 specifications
| Operating Voltage | 2.5 V to 5.5 V |
|---|---|
| Supply Current (Typical) | 5 μA |
| Reset Voltage Threshold Accuracy | ±1.8% at 25°C |
| Reset Timeout Periods | 1 ms, 20 ms, 140 ms, or 1120 ms |
| Package Type | 4-Lead SOT-143 |
| Operating Temperature Range | -40°C to +125°C |
Source: Analog Devices ADM6315 Microprocessor Supervisory Circuit Data Sheet
All Analog Devices ADM6315 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum voltage degradation the ADM6315 can detect?
The device is designed to monitor as little as a 1.8% degradation of a power supply voltage.
From: Analog Devices ADM6315 Microprocessor Supervisory Circuit Data Sheet
What is the function of the MR pin?
The MR pin is a manual reset input that allows the system operator or a digital circuit to reset the system.
From: Analog Devices ADM6315 Microprocessor Supervisory Circuit Data Sheet
What is the ESD rating of the ADM6315?
The device is rated for 25 kV ESD protection.
What package type is the ADM6315 offered in?
It is available in a 4‑lead SOT‑143 package.
What is the typical supply current of the ADM6315?
The ADM6315 typically draws only 5 pA of supply current.
How many reset timeout options are available?
The device provides four selectable reset timeout periods: 1 ms, 20 ms, 140 ms, and 1120 ms.
