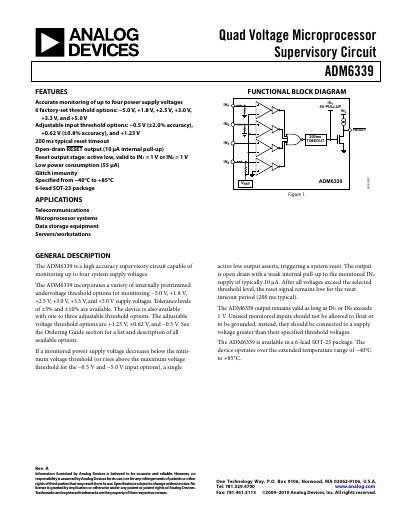

Analog Devices ADM6339 Datasheet
The ADM6339 monitors up to four power‑supply voltages and provides an open‑drain reset output that stays low for a typical 200 ms timeout. It offers six factory‑set threshold options (‑5.0 V, +1.8 V, +2.5 V, +3.0 V, +3.3 V, +5.0 V) and three user‑adjustable thresholds (+1.23 V, +0.62 V, ‑0.5 V).
Designed for telecommunications, microprocessor systems, data‑storage equipment and servers, the device is supplied in a 6‑lead SOT‑23 package, operates from –40 °C to +85 °C and draws only 55 µA typical current.
Analog Devices ADM6339 specifications
| Input current | 25 µA to 40 µA |
|---|---|
| Factory‑set threshold options | ‑5.0 V, +1.8 V, +2.5 V, +3.0 V, +3.3 V, +5.0 V |
| Reset timeout period | 200 ms typical |
| Power consumption | 55 µA (low power) |
| Package | 6‑lead SOT‑23 |
| Operating temperature range | ‑40 °C to +85 °C |
Source: Analog Devices ADM6339 Datasheet
