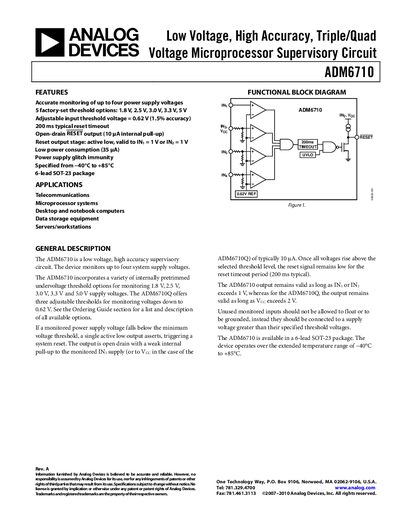

Analog Devices ADM6710 Product Handbook Rev A
The ADM6710 is a low‑voltage, high‑accuracy supervisory circuit that monitors up to four system supply voltages. It offers factory‑set threshold options for 1.8 V, 2.5 V, 3.0 V, 3.3 V and 5 V, plus adjustable thresholds down to 0.62 V.
The handbook includes functional block diagrams, pin configurations, typical performance curves, absolute maximum ratings, and guidelines for adding manual reset. It also lists ordering options and package information for the 6‑lead SOT‑23 device.
Analog Devices ADM6710 specifications
| Operating Voltage Range | 2.0 V to 5.5 V |
|---|---|
| Input Current (INx) | 25 µA typical, 40 µA max |
| Threshold Voltage (example) | 3.00 V typical |
| Reset Timeout Period | 200 ms typical |
| Package Type | 6‑lead SOT‑23 |
| Operating Temperature Range | ‑40 °C to +85 °C |
All Analog Devices ADM6710 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the reset timeout period?
The reset timeout period is typically 200 ms.
What package is the ADM6710 available in?
The device is offered in a 6‑lead SOT‑23 package.
What is the typical reset timeout period for the ADM6710?
The typical reset timeout period is 200 ms.
How many factory‑set voltage thresholds does the ADM6710 provide?
It provides five factory‑set threshold options: 1.8 V, 2.5 V, 3.0 V, 3.3 V, and 5 V.
