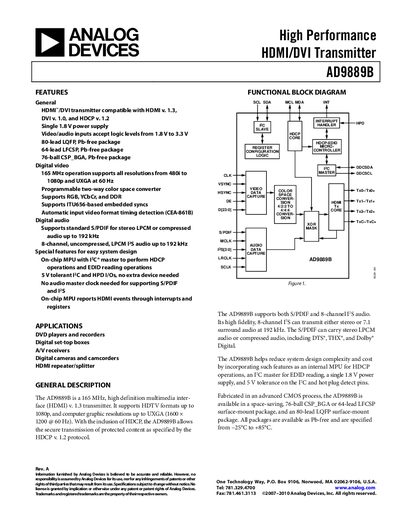

Analog Devices AD9889B HDMI/DVI Transmitter Datasheet
The AD9889B is a high‑performance HDMI/DVI transmitter that supports HDMI v1.3, DVI v1.0 and HDCP v1.2. It accepts video/audio inputs from 1.8 V to 3.3 V, operates up to 165 MHz, and offers built‑in HDCP and EDID handling to simplify system design.
The datasheet provides detailed electrical specifications, pin configurations for 80‑lead LQFP, 64‑lead LFCSP and 76‑ball CSP_BGA packages, and ordering information. Mechanical drawings and thermal data are also included.
All Analog Devices AD9889B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What video resolutions does the AD9889B support?
It supports all resolutions from 480i to 1080p and UXGA at 60 Hz.
What audio formats are supported by the AD9889B?
The device supports standard S/PDIF for stereo LPCM or compressed audio up to 192 kHz, including DTS, THX and Dolby Digital.
Which video formats are supported by the AD9889?
It supports all video formats from 480i up to 1080i and 720p.
Does the AD9889 include HDCP support?
Yes, the device includes an on‑chip HDCP master for HDMI 1.1.
