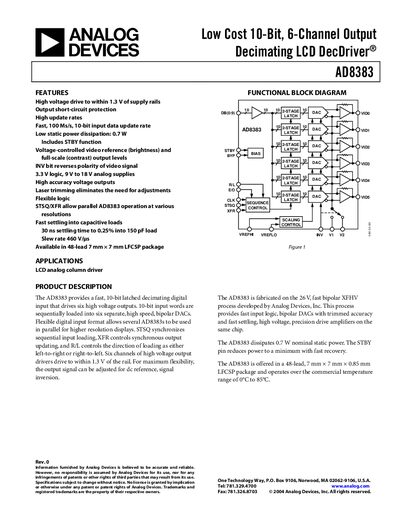

ANALOG DEVICES Low Cost 10-Bit 6-Channel Output Decimating LCD DecDriver AD8383 handbook
The AD8383 provides a fast, 10‑bit latched decimating digital input that drives six high‑voltage LCD column outputs. It features high update rates, low static power dissipation, standby mode, and flexible logic for parallel operation to increase resolution.
The device is offered in a 48‑lead 7 mm × 7 mm LFCSP package, operates from 3.3 V to 18 V supplies, and supports ambient temperatures from 0 °C to 85 °C. Typical specifications include 100 mA output current per channel, 0.7 W static power, and a maximum input data rate of 100 Ms/s.
Analog Devices AD8383 specifications
| Maximum Input Data Update Rate | 100 Ms/s |
|---|---|
| Static Power Dissipation | 0.7 W |
| Output Current per Channel | 100 mA |
| Package | 48‑lead 7 mm × 7 mm LFCSP |
| Operating Temperature Range | 0 °C to 85 °C |
Source: ANALOG DEVICES Low Cost 10-Bit 6-Channel Output Decimating LCD DecDriver AD8383 handbook
All Analog Devices AD8383 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current per channel?
Each output of the AD8383 is internally limited to 100 mA average.
From: ANALOG DEVICES Low Cost 10-Bit 6-Channel Output Decimating LCD DecDriver AD8383 handbook
How much static power does the AD8383 consume?
The device dissipates about 0.7 W of static power.
From: ANALOG DEVICES Low Cost 10-Bit 6-Channel Output Decimating LCD DecDriver AD8383 handbook
What is the resolution of the AD8383?
The AD8383 provides a 10‑bit resolution.
What is the maximum input data update rate?
The device can update input data at up to 100 Ms/s.
